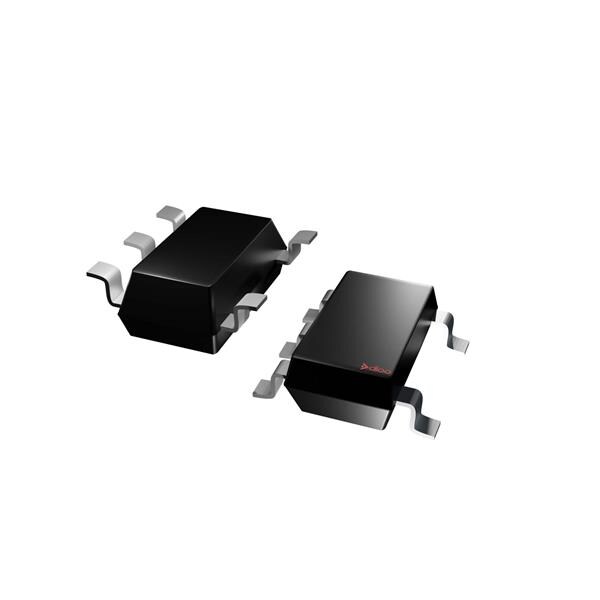

DIOO DIO7865B50ST5 High-Voltage, Ultra-Low Quiescent Current 300mA,Low Power Linear Voltage Regulator
Manufacturer: DIOO Model: DIO7865B50ST5 - Contact
Polarity: Positive
Output Type: Fixed
Mounting Style: SMD/SMT
Output Current: 300 mA
Output Voltage: 5 V
Dropout Voltage: 500 mV
Line Regulation: 10 mV
Load Regulation: 10 mV
Number of Outputs: 1 Output
Quiescent Current: 4 uA
Input Voltage - Max: 40 V
Input Voltage - Min: 3 V
Dropout Voltage - Max: 950 mV
Operating Temperature Range: - 40 C to + 125 C
Voltage Regulation Accuracy: 2 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 60 dB
