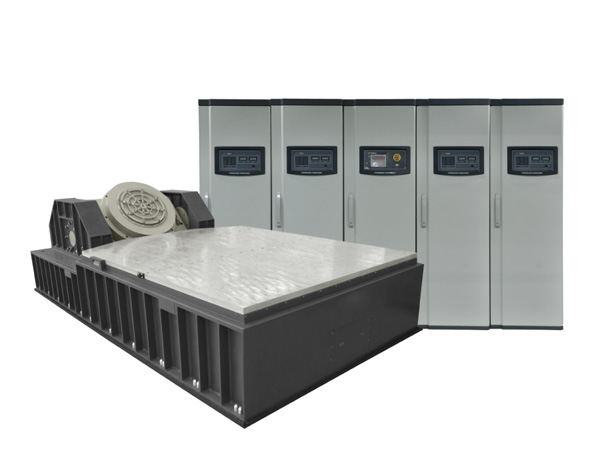

Dongling ES-120-550 Water-cooled Vibration Test System (120/120, 240 kN)

Sine/Random Force (kN): 120/120

Shock Force @6ms (kN): 240

Frequency Range (Sine) (Hz): 5-2500

Frequency Range (Random) (Hz): 5-2500

Max. Acceleration (Sine) (g): 100

Max. Acceleration (Random) (g): 60

Max. Velocity (m/s): 2

Max. Displacement (mm): 51

Max. Load (kg): 1000

Resonance Point (Hz): 2200

Shaker Model: ET-120-550

Moving Part Mass (kg): 90

Armature Diameter (mm): 550

Mass (kg): 7000

Dimension (L*W*H) (mm): 1780*1280*1380

Isolation Airbag Resonance Frequency (Hz): 2.5

Power Amplifier Model: SDA-120

Output Power (kVA): 120

Power Consumption (kVA): 180

Mass (kg): 1900

Dimension (L*W*H) (mm): 1800*1010*2020

Cooling Unit Model: CU-2

Internal Circle Flow Rate (L/min): 80

Internal Circle Water Pressure (MPa): 1

External Circle Flow Rate (L/min): 200

External Circle Water Pressure (MPa): 0.25-0.4

Water Pump Power (I/E) (kW): 8.4

Mass (kg): 300

Dimension (L*W*H) (mm): 607*1010*2020
