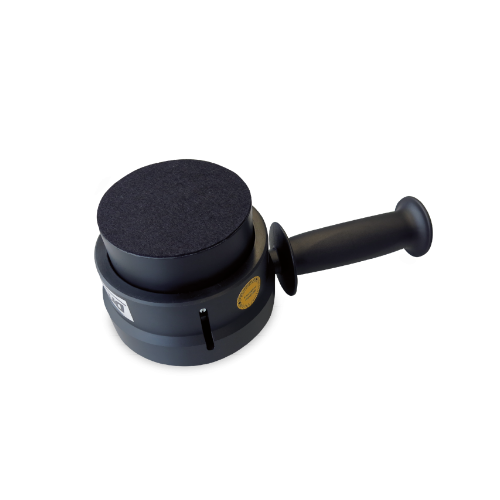

- Original BIA Class 1:
Measuring range: 25 ... 310 N
Accuracy: +/– 3 N or 3% of reading
Resolution: 1 N
Stiffness: 10 N/mm
Gap width: 115 mm / 4.5"
Diameter: 100 mm / 3.9"
Measuring principle: DMS transducer
Acquisition frequency / rate: 250 Hz / 4 ms
Power supply: battery 9 V block, e.g. 6LR61
Battery voltage monitoring: yes
Operating temperature range: -10 to +40 °C / 14 to 104 °F
Storage temperature range: -40 to +50 °C / -40 to 122 °F
Humidity: max. 90% rel. h, non-condensing.
Dimensions: 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5"
Weight: 2.1 kg / 4.6 lb
- Display device SEB2:
Data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
9 V battery supply
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
PC evaluation software PinchPilot
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of the standard-relevant characteristic values
Evaluation according to different guidelines possible
Custom policy adjustable
Log printout
Data export (Excel, CSV, PDF)
Optional measuring point identification
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:
1 x Closing force measuring device BIA class 1 with 2.5 m connection cable
1 x Display device SEB2 separate measured value acquisition module with LCD and LED display membrane key and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
