- FM208:
Application of force:on one side
Measuring range: 0 ... 200 N
Accuracy: +/– 3 N (0-100 N) or +/– 3 % (> 100 N)
Spring stiffness: 2 N/mm, +/–(10%)
Gap width: 30 mm / 1.1"
Area: 20 x 20 mm / 0.7 x 0.7"
Force sensor: DMS bridge
Dimensions: ca. 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8"
Weight: ca. 2.5 kg / 5.5 lb
- Display device SEB2:
Display device SEB2 data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
Lithium polymer battery
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of the standard-relevant characteristic values
Evaluation according to different guidelines possible
Custom policy adjustable
Log printout
Data export (Excel, CSV, PDF)
Optional measuring point identification
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:

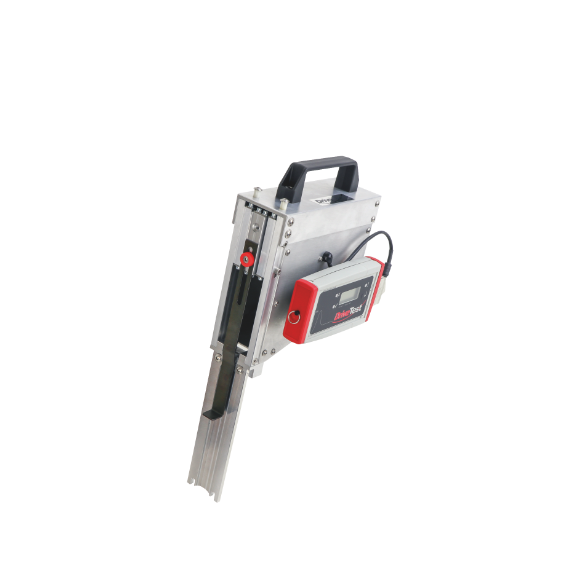

1 x Closing force measuring device FM208
1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB interface
1 x 9 V block battery
1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform), monopod, bumper support block, window support block, sunroof support block, sliding roof spacer
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot
1 x Manual
1 x ISO calibration certificate
