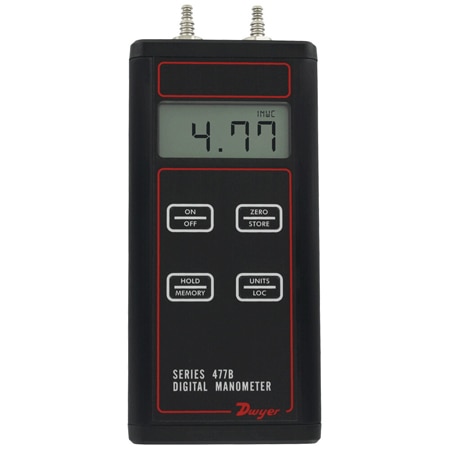

Dwyer 477B-3 Digital Manometers, 0-20 inH2O to 100 psi, ± 0.10% accuracy, backlight. (± 0.1 %, 200 inH₂O, Barbed Connection, 1/8 in)
Manufacturer: Dwyer Model: 477B-3 - Contact
Weight: 10.2 oz
Accuracy: ± 0.1 %
Compliance: CE
Hysteresis: ± 0.1%
Display Note: 4-digit LCD (.425˝ H x .234˝ W digits)
Display Type: LCD
Accuracy Note: ± 0.10% FS from 60 to 78°F (15.6 to 25.6°C); ± 1% FS from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C)
Pressure, Max: 200 inH₂O
Pressure, Min: 0 inH₂O
Pressure Limits: Up to 100 psi
Measurement Type: Flow, Pressure, Velocity
Number of Digits: 4
Materials, Wetted: Consult Factory
Supply Power Type: Battery
Media Compatibility: Air, Argon, Compatible Gases, Nitrogen
Battery Size and Type: Alkaline 9V
Operating Pressure, Max: 15 psi
Process Connection Size: 1/8 in
Process Connection Type: Barbed Connection
Operating Temperature, Max: 140 °F
Operating Temperature, Min: 0 °F
Compensated Temperature, Max: 176 °F
Compensated Temperature, Min: -4 °F
