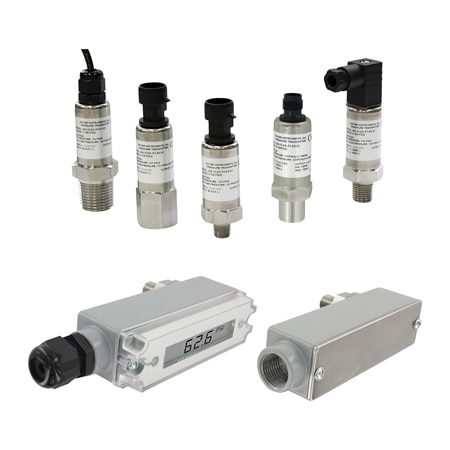

Dwyer 626-07-GH-P1-E1-S1 Accurate Industrial Pressure Transmitters, 0.25% & 1% Accuracy, NEMA 4X (Gauge, 15 psi, NPT Male, 1/4 in)

Weight: 283 g

Accuracy: ± 0.25 %

Compliance: CE

Accuracy Note: 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)

Output Detail: 4 to 20 mA

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 15 psi

Pressure, Min: 0 psi

Response Time: 300 ms

Burst Pressure: 500 psi Maximum

Proof Pressure: Up to 200 psi

Supply Voltage: 10 to 35 Vdc

Compliance Note: CE, Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20

Loop Resistance: 0 to 1000 Ω max

Thermal Effects: ± 0.02% FS/°F (includes zero and span)

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: 316L Stainless Steel

Power Consumption: 38 mA

Supply Power Note: 10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 to 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ± 0.5 VDC (for 0.5 to 4.5 VDC ratio to metric output), 10 to 35 VDC (for 4 to 20 mA with to CB option); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with to CB option)

Supply Power Type: DC

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Housing Construction: General Purpose Housing

Mounting Orientation: Not Position Sensitive

Electrical Connection: Cable Gland with Cable

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 200 °F

Operating Temperature, Min: 0 °F

Compensated Temperature, Max: 175 °F

Compensated Temperature, Min: 0 °F
