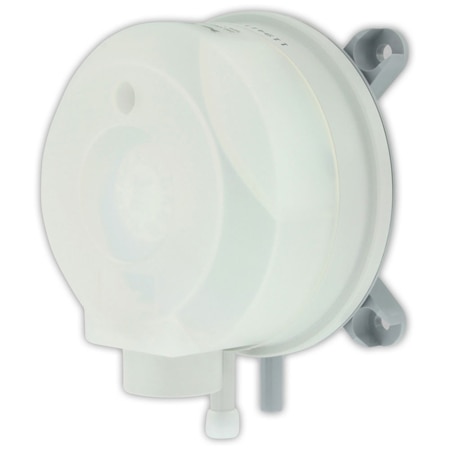

Dwyer ADPS-04-2-N Adjustable Differential Pressure Switch – 0.08 to 20 inH2O (20 to 5000 Pa) (Differential, 1.6 inH₂O, Barbed Fitting, 5/16 in, IP54, NEMA Type 13)
Manufacturer: Dwyer Model: ADPS-04-2-N - Contact
Weight: 125 g
Deadband: 0.06 to 0.09 inH2O
Switch Note: Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min
Switch Type: SPDT NO/NC, Selectable
Pressure Type: Differential
Pressure, Max: 1.6 inH₂O
Pressure, Min: 0.12 inH₂O
Switch Rating: 1.5 A/0.4 A @ 250 Vac
Proof Pressure: Up to 40 inH2O
Mechanical Life: >10^6 cycles
Enclosure Ratings: IP54, NEMA Type 13
Materials, Wetted: Nylon 6.6, POM, Silicone
Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation: Vertical with Downward Pressure Ports
Electrical Connection: M20 Female Conduit with Strain Releif and Screw Terminal block
Process Connection Note: 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing
Process Connection Size: 5/16 in
Process Connection Type: Barbed Fitting
Storage Temperature, Max: 185 °F
Storage Temperature, Min: -40 °F
Operating Temperature, Max: 185 °F
Operating Temperature, Min: -4 °F
Material Construction Option: Standard
