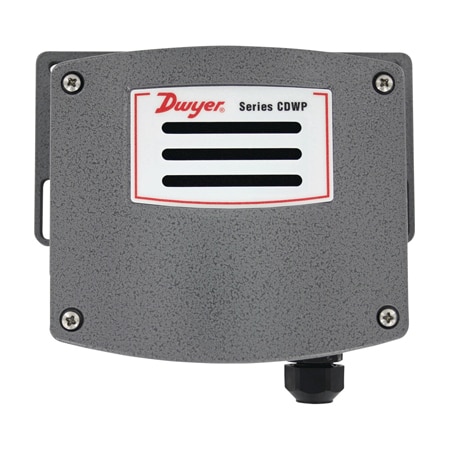

Dwyer CDWP-10W-C5 CO2 Transmitter, IP54, Monitors Carbon Dioxide, Ideal for Industrial Use (NDIR, 10000 ppm)

Weight: 26.24 oz

Compliance: CE

Sensor Type: NDIR

Switch Type: N/A

Display Type: N/A

Non-Linearity: 16 ppm

Output Signal: Current, Voltage

Supply Voltage: 19 to 28 Vac/16 to 35 Vdc

Measurement Type: Carbon Dioxide

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP54

Power Consumption: Average: 2 W; Peak: 3.75 W

Relative Humidity: 0 to 85% RH Non-Condensing

Supply Power Type: AC/DC

Mounting Orientation: Wall Mount

Voltage Output Range: 0 to 5 Vdc, 0 to 10 Vdc

Electrical Connection: Cable Gland for 5 to 8 mm Wire with Screw Terminal block

Carbon Dioxide Accuracy: ± 50 ppm + 10% rdg

Temperature Output Range: N/A

Operating Temperature, Max: 122 °F

Operating Temperature, Min: 32 °F

Carbon Dioxide Response Time: 120 s (τ90)

Carbon Dioxide Concentration, Max: 10000 ppm

Carbon Dioxide Concentration, Min: 0 ppm
