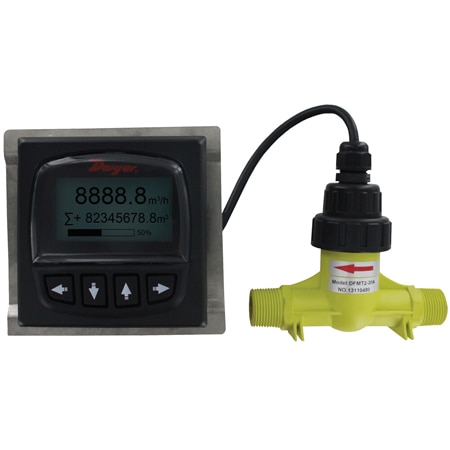

Dwyer DFMT2-20A Remote Digital Paddlewheel Flow Transmitter, 4-20 mA, PVDF Sensor (± 1.5 %, 194 °F, 26.42 GPM, 3/4 in, NPT Male, ABS, 12 to 24 Vdc, Removable Screw Terminal)
Manufacturer: Dwyer Model: DFMT2-20A - Contact
Weight: 1.85 lb
Accuracy: ± 1.5 %
Materials: ABS
Display Note: 2.38 x 1.25˝ (60.33 x 31.75 mm) LCD, Totalizing Display Maximum: 9,999,999,999
Display Type: LCD
Output Detail: Analog: 4-20 mA (750 Ω max. loop resistance); Pulse: NPN square wave output; Frequency: 0 to 2 kHz (adjustable); Pulse width: 0 to 1000 ms (adjustable)
Output Signal: Current, DC Pulse
Repeatability: ± 0.5%
Supply Voltage: 12 to 24 Vdc
Pressure Limits: Up to 145 psi
Enclosure Ratings: IP65
Materials, Wetted: Ceramic, Fluorosilicone, PVDF
Power Consumption: 2 W
Supply Power Type: DC
Media Compatibility: Alcohols, Compatible Liquids, Oils, Water
Electrical Connection: Removable Screw Terminal
Process Connection Size: 3/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 194 °F
Process Temperature, Min: -4 °F
Volumetric Flow Rate, Max: 26.42 GPM
Volumetric Flow Rate, Min: 1.32 GPM
Operating Temperature, Max: 149 °F
Operating Temperature, Min: -4 °F
