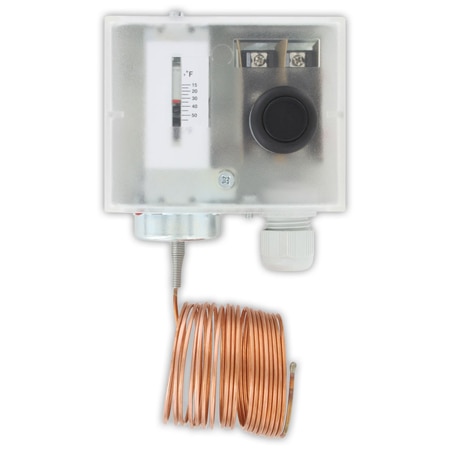

Dwyer DFS2-DM20 Low Limit Freeze Protection Switch – Adjustable Set Point to 34 °F (0 °F)
Manufacturer: Dwyer Model: DFS2-DM20 - Contact
Weight: 1.6 lb
Deadband: 1.8 °F
Materials: Galvanized Steel, ABS, Copper
Compliance: CE
Wire Gauge: 14 AWG
Reset Action: Manual
Switch Rating: 15 A @ 24 to 250 Vac
Sensing Element: Vapor-Filled Capillary
Capillary Length: 20 ft
Insertion Length: 0 in
Enclosure Ratings: IP40, NEMA Type 1
Relative Humidity: 0 to 95 %, Non-Condensing
Low Level Setpoint: Factory Set: 39°F (4°C), and Safety Lock Secured; Adjustment via Screwdriver Slot.
Electrical Connection: M20 Female Conduit with Strain Releif and Screw Terminal block
Process Temperature, Max: 0 °F
Process Temperature, Min: 0 °F
Storage Temperature, Max: 158 °F
Storage Temperature, Min: 14 °F
Capillary Temperature Note: 392°F (200°C), maximum 60 minutes
Operating Temperature, Max: 54 °F
Operating Temperature, Min: 14 °F
Capillary Overload Temperature: 392 °F
