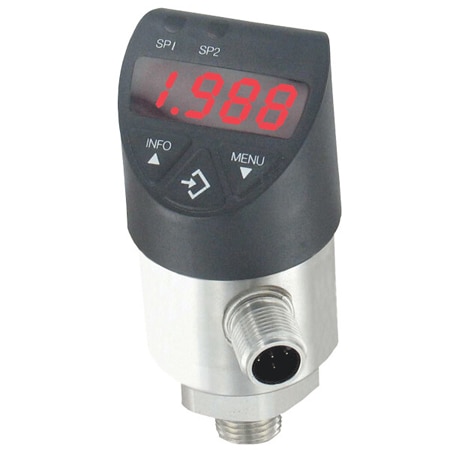

Dwyer DPT-A08 Digital Pressure Transmitter, LED Display, Programmable Switches, 3-Way Design (Gauge, 300 psi, PNP, NPT Male, 1/4 in, IP67)
Manufacturer: Dwyer Model: DPT-A08 - Contact
Weight: 0.2 kg
Accuracy: ± 1 %
Materials: 316L Stainless Steel, Fiberglass Reinforced Plastic
Switch Type: PNP
Display Note: Red LED 4-digit (0.35˝ H digits)
Display Type: LED
Accuracy Note: 1.0% FS (includes non-linearity, hysteresis, zero point)
Output Detail: 4 to 20 mA
Output Signal: Current
Pressure Type: Gauge
Pressure, Max: 300 psi
Pressure, Min: 0 psi
Switch Rating: 250 mA
Burst Pressure: 75 psi Maximum
Proof Pressure: Up to 30 psi
Supply Voltage: 15 to 35 Vdc
Loop Resistance: ≤ 0.5k
Thermal Effects: 0.2% FS/10k
Number of Digits: 4
Enclosure Ratings: IP67
Materials, Wetted: 316L Stainless Steel
Power Consumption: <100 mA
Supply Power Type: DC
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Mounting Orientation: Not Position Sensitive
Electrical Connection: M12 5 pin Male
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Operating Temperature, Max: 176 °F
Operating Temperature, Min: 32 °F
