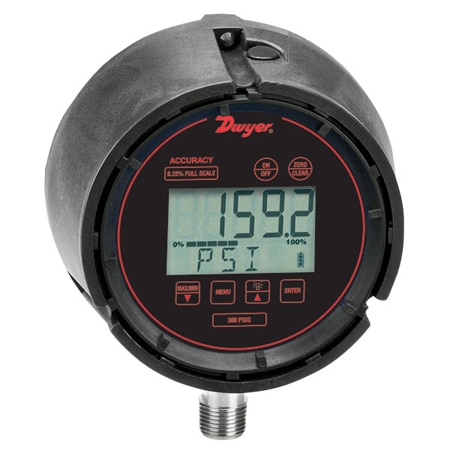

Dwyer DSGT-113-C0S Digital Transmitter, 0.25% Accuracy, 4-20 mA, NEMA 4, User-Friendly Display (Gauge, 1500 psi, NPT Male, 1/2 in)
Manufacturer: Dwyer Model: DSGT-113-C0S - Contact
Weight: 1.45 lb
Accuracy: ± 0.25 %
Materials: Fiberglass Reinforced Thermoplastic
Switch Type: N/A
Display Note: 5 digit (0.88˝ high).
Display Type: LCD
Accuracy Note: 0.25% FS (includes linearity, hysteresis, repeatability)
Output Detail: 4 to 20 mA
Output Signal: Current
Pressure Type: Gauge
Pressure, Max: 1500 psi
Pressure, Min: 0 psi
Response Time: 100 ms
Proof Pressure: 2x Full Scale
Supply Voltage: 12 to 36 Vdc
Thermal Effect: 0.04% FS/°F
Loop Resistance: 0 to 1090 Ω
Number of Digits: 5
Materials, Wetted: Stainless Steel
Supply Power Note: 12-36 VDC (loop powered)
Supply Power Type: DC
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Set Point Adjustment: Menu Configurable
Battery Size and Type: Alkaline C
Electrical Connection: Pigtail Leads
Process Connection Size: 1/2 in
Process Connection Type: NPT Male
Operating Temperature, Max: 140 °F
Operating Temperature, Min: 14 °F
