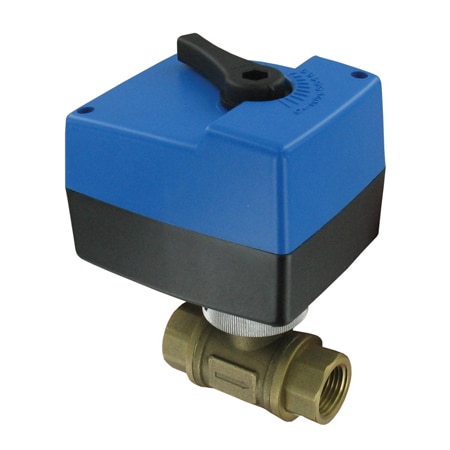

Weight: 1.43 lb
Cv Factor: 4.5 gal/min
Cycle Time: 45 s
Valve Type: 2-way
Wire Gauge: 18 AWG
Port 1 Size: 1/2 in
Port 1 Type: NPT Female
Port 2 Size: 1/2 in
Port 2 Type: NPT Female
Supply Voltage: 24 Vac
Valve Position: Normally Closed
Pressure Limits: Up to 375 psi
Enclosure Ratings: IP10, NEMA Type 1
Materials, Wetted: Brass, Buna-N (NBR), PTFE, Stainless Steel
Power Consumption: 4 VA
Supply Power Note: 120 Vac or 24 Vac, 50/60 Hz, single phase
Supply Power Type: AC
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Input Control Signal: 4 to 20 mA
Pressure Limits Note: Max: 375 psi (25 bar); Close off: 87 psi (6 bar)
Process Temperature, Max: 122 °F
Process Temperature, Min: 23 °F
Operating Temperature, Max: 158 °F
Operating Temperature, Min: -22 °F
