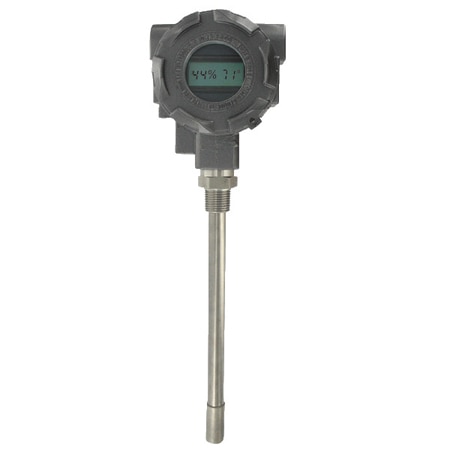

Dwyer HHT-EU-LCD Hazardous Area Humidity/Temperature Transmitter, 4-20 mA Output (0 °F)

Weight: 1134 g

Materials: Housing Material: Aluminum

Compliance: CE, FM

Hysteresis: ± 1%

Protection: Explosion-Proof

Display Note: Optional 2 line alpha numeric, 8 characters/line. Temperature display is °F/°C selectable

Display Type: LCD

Output Detail: 4-20 mA, 2 channels for humidity/temperature models (loop power on RH)

Output Signal: Current

Repeatability: ± 0.1%

Response Time: 15 s

Current Output: 4 to 20 mA

Supply Voltage: 16.5 to 28 Vdc

Measurement Type: Relative Humidity

Enclosure Ratings: IP66, NEMA Type 4X

Relative Humidity: 0 to 100% RH

Supply Power Note: For explosion-proof models HHT-EX, 16.5-28 VDC

Supply Power Type: DC

Temperature Drift: <1% RH/year

Display Resolution: RH: 0.1%, Temperature: 0.1°F

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Enclosure Ratings Note: NEMA 4X (IP66). Explosion- Proof, Class I Div. 1 Group B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1

Process Temperature, Max: 0 °F

Storage Temperature, Max: 176 °F

Storage Temperature, Min: -40 °F

Operating Temperature, Max: 140 °F

Operating Temperature, Min: -40 °F

Relative Humidity Accuracy: ± 2% RH

Material Construction Option: Explosion-proof

Relative Humidity Input Range: 0 to 100% RH
