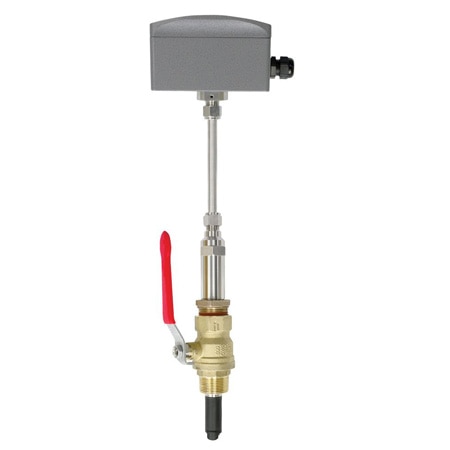

Dwyer IEF-SN-CND Electromagnetic Flow Transmitter for 4-36" Pipes, Adjustable Installation (± 1 %, 250 °F, 1 in, BSPT Male, Aluminum, 36 in, 12 to 42.4 Vdc, 0.25 A @ 24 Vdc; 12 to 36 Vac, 1/2 in NPT female Conduit with Screw Terminal block)

Accuracy: ± 1 %

Materials: Aluminum

Compliance: BTL, CE

Conductivity: > 20 µS/cm

Display Type: N/A

Accuracy Note: Standard accuracy 4 to 36˝ (100 to 900 mm) pipe; 1% FS, High accuracy units: ± 0.5% of reading at calibrated velocity; ± 1% of reading from 2 to 20 ft/s (0.6 to 6 m/s); ± 0.02 ft/s (± 0.006 m/s) at < 2 ft/s (0.6 m/s); Standard accuracy units: ± 1% FS

Display Range: 0 to 100% Glycol Display Selectable

Output Detail: (1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable); (1) Pulse/Frequency: 0-15 V peak pulse, 0 to 500 Hz or scalable pulse output (display selectable); (2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display selectable); (1) Reverse flow output indication

Output Signal: Current, Voltage, DC Pulse

Control Output: Alarm

Data Interface: N/A

Pipe Size, Max: 36 in

Pipe Size, Min: 4 in

Supply Voltage: 12 to 42.4 Vdc, 0.25 A @ 24 Vdc; 12 to 36 Vac

Pressure Limits: Up to 400 psi

Enclosure Ratings: IP68, NEMA Type 6P

Materials, Wetted: Polymer, Silicon, Stainless Steel

Supply Power Type: AC/DC

Pressure Drop Note: < 0.1 psi at 12 ft/s in 4" (101.6 mm) and Larger Pipe

Pressure Drop, Max: 0.1 psi

Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Linear Flow Rate, Max: 20 ft/s

Linear Flow Rate, Min: 0 ft/s

Process Connection Size: 1 in

Process Connection Type: BSPT Male

Process Temperature, Max: 250 °F

Process Temperature, Min: 15 °F

Storage Temperature, Max: 185 °F

Storage Temperature, Min: -40 °F

Straight Run Requirements: >10 Diameter Upstream, >5 Diameter Downstream

Operating Temperature, Max: 160 °F

Operating Temperature, Min: -20 °F
