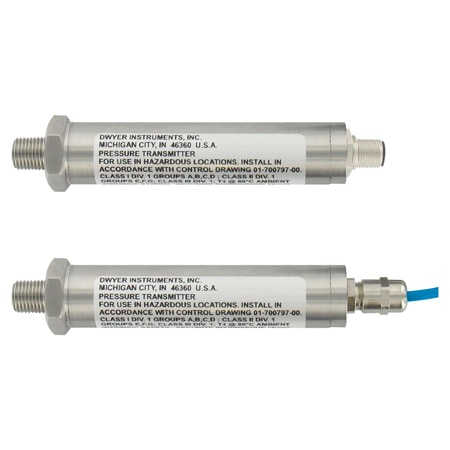

Dwyer IS626-10-GH-P1-E1-S1 IS626 Intrinsically Safe Pressure Transmitter, 0.25% Accuracy, NEMA 4X (Gauge, 100 psi, NPT Male, 1/4 in)

Weight: 252 g

Accuracy: ± 0.25 %

Compliance: CE, cULus, IS UL-913

Accuracy Note: 0.25% FS

Output Detail: 4 to 20 mA

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 100 psi

Pressure, Min: 0 psi

Response Time: 50 ms

Burst Pressure: 150 psi Maximum

Proof Pressure: Up to 30 psi

Supply Voltage: 10 to 28 Vdc

Loop Resistance: 0 to 900 Ω max

Thermal Effects: ± 0.02% FS/°F (includes zero and span)

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: 316 Stainless Steel, 316L Stainless Steel

Power Consumption: 38 mA

Supply Power Type: DC

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Mounting Orientation: Not Position Sensitive

Electrical Connection: Cable

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 176 °F

Operating Temperature, Min: 0 °F

Compensated Temperature, Max: 176 °F

Compensated Temperature, Min: 0 °F
