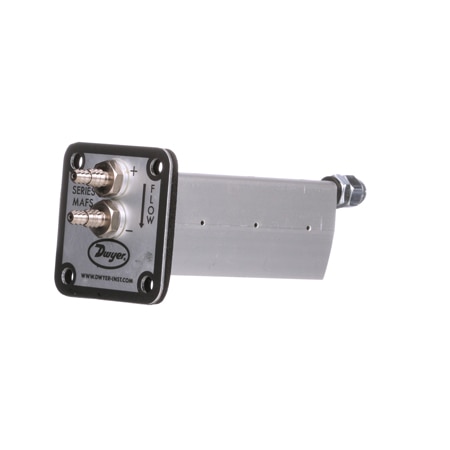

Dwyer MAFS-12 Metal Averaging Flow Sensor for Accurate Duct Air Velocity Measurement
Manufacturer: Dwyer Model: MAFS-12 - Contact
Height: 0 in
Accuracy: ± 2 %
Diameter: 0 in
Compliance: RoHS 2
Probe Length: 12 in
Accuracy Note: 400 to 9000 FPM (45.7 m/s); ± 2% FS, ± 3% FS for 6˝ (160 mm) and 48˝ (1200 mm) length models
Velocity, Max: 12000 FPM
Velocity, Min: 400 FPM
Compliance Note: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Materials, Wetted: Aluminum
Media Compatibility: Air
Gasket Temperature, Max: 230 °F
Gasket Temperature, Min: -31 °F
Process Connection Size: 3/16 in, 1/4 in
Process Connection Type: Tube
Straight Run Requirements: 5 Diameters
Operating Temperature, Max: 400 °F
