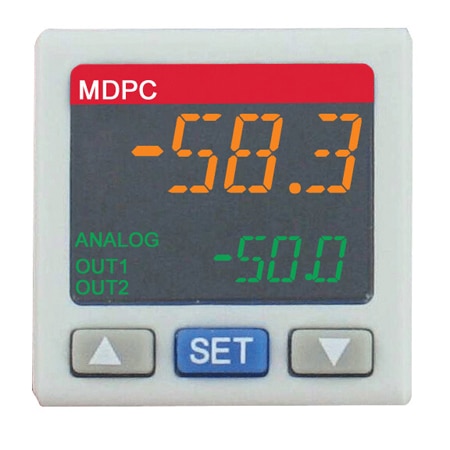

Dwyer MDPC-212 Mini Digital Pressure Controller for Gas - High Accuracy, 6 Units, LED Display (± 3 %, Gauge, 145 psi, Up to 217.6 psi, NPT Male, NPN)

Weight: 1.3 oz

Accuracy: ± 3 %

Materials: Polycarbonate, PBT

Compliance: UL

Switch Type: NPN

Display Note: 2-line LCD display, 4 digits for measured value and 3.5 digits for setup display Display Cycle: Programmable to 100ms, 250ms, 500ms or 1000ms

Display Type: LCD

Accuracy Note: ± 3% of full range

Display Cycle: Programmable to 100ms, 250ms, 500ms or 1000ms

Output Detail: 4 to 20 mA

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 145 psi

Pressure, Min: -14.5 psi

Response Time: 2 ms

Switch Rating: 100 mA @ 30 Vdc

Supply Voltage: 12 to 24 Vdc

Load Resistance: 400 Ω max

Pressure Limits: Up to 217.6 psi

Number of Digits: 4

Materials, Wetted: Brass with Nickel Plating

Power Consumption: 60 mA + Output Current

Supply Power Note: 12 to 24 VDC ± 10% no isolations

Supply Power Type: DC

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Process Connection Note: 1/8˝ NPT, inner connection M5, for 1/8˝ PT contact factory.

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Process Temperature, Max: 122 °F

Process Temperature, Min: 32 °F

Storage Temperature, Max: 149 °F

Storage Temperature, Min: -4 °F

Operating Temperature, Max: 185 °F

Operating Temperature, Min: -40 °F

Zero Setting Adjustable Range: Menu Scalable within the Range
