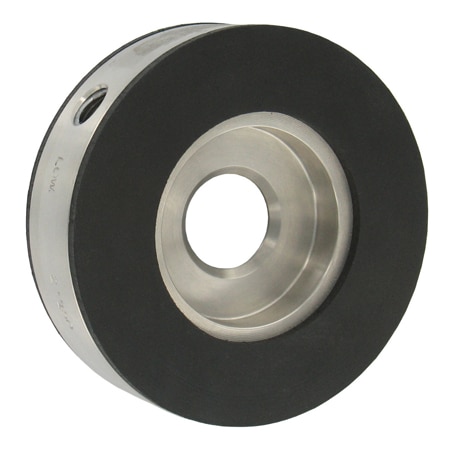

Dwyer OP-N-2 Stainless Steel Orifice Plate Flowmeter, 1/2 to 24 in, Built-in Gaskets (883.04 GPM, 3145.5 SCFM)
Manufacturer: Dwyer Model: OP-N-2 - Contact
Beta: 0.5
Weight: 20 lb
Accuracy: ± 0.6 %
Bore Size: 5 in
Head Loss: 1 - Beta ratio² (eg: 1-0.72 = 1-0.49 = 51% of the d.p.)
Line Size: 10 in
Installation: Standard Flange, Any rating (orifice flanges not required)
Air Flow, Max: 3145.5 SCFM
Pressure Type: Gauge
Liquid Flow, Max: 883.04 GPM
Materials, Wetted: 304 Stainless Steel, Buna-N (NBR)
Media Compatibility: Air, Water
Process Connection Size: 1/4 in
Process Connection Type: NPT Female
Straight Run Requirements: 10 Diameters Upstream, 5 Diameters Downstream
Operating Temperature, Max: 200 °F
Operating Temperature, Min: -50 °F
