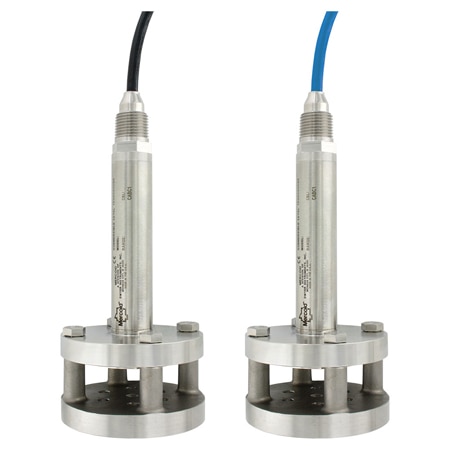

Dwyer PBLT2-15-80 Submersible Level Transmitters for Wastewater & Slurry, 316 SS, UL Certified (15 psi)
Manufacturer: Dwyer Model: PBLT2-15-80 - Contact
Weight: 4.3 lb
Accuracy: ± 0.25 %
Mounting: Suspended in Tank Below Level Being Measured
Compliance: CE, UKCA
Protection: Lightning And Surge Protection
Cable Length: 80 ft
Accuracy Note: ± 0.25% FS (includes linearity, hysteresis, and repeatability)
Output Detail: 4 to 20 mA DC, 2-wire
Output Signal: Current
Pressure, Max: 15 psi
Response Time: 50 ms
Proof Pressure: 2x Full Scale
Supply Voltage: 13 to 30 Vdc
Thermal Effect: ± 0.02% FS/°F
Loop Resistance: 900 Ω
Electrical Output: 4 to 20 mA
Materials, Wetted: ETFE, Fluoroelastomer, Stainless Steel
Supply Power Type: DC
Media Compatibility: Consult Factory
Electrical Connection: Pigtail Leads
Operating Temperature, Max: 200 °F
Operating Temperature, Min: 0 °F
Compensated Temperature, Max: 180 °F
Compensated Temperature, Min: 0 °F
Material Construction Option: ETFE cable jacket
