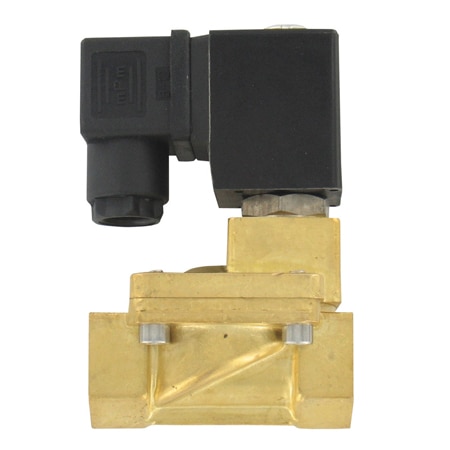

Dwyer SBSV-B3N1 Compact Brass 2-Way Solenoid Valve, NC, for Air, Gas & Liquids, 176°F Max (4.5 gal/min, 3/8 in, NPT Female, 0.51 in)

Weight: 1.54 lb

Cv Factor: 4.5 gal/min

Materials: Nylon

Compliance: CE

Orifice Size: 0.51 in

Supply Voltage: 110 Vac

Pressure Limits: Up to 246.6 psi

Enclosure Ratings: IP54, NEMA Type 13

Materials, Wetted: Brass, Buna-N (NBR), Stainless Steel

Power Consumption: Inrush: 55 VA, Holding: 22 VA

Supply Power Type: AC

Type of Operation: Normally Closed

Media Compatibility: Consult Factory

Mounting Orientation: None

Electrical Connection: DIN 43650 A (solenoid valve)

Process Connection Size: 3/8 in

Process Connection Type: NPT Female

Operating Pressure Range: 7.3 to 188.5 psi

Operating Temperature, Max: 149 °F

Operating Temperature, Min: 32 °F
