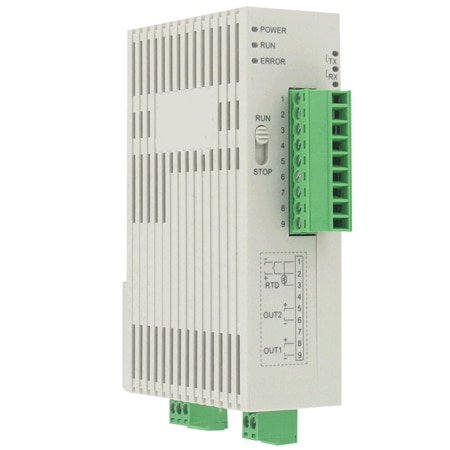

Dwyer SCD-1023 DIN Rail PID Temp/Process Controllers, Universal Input, Relay Output, Wireless (RS-485 Modbus ASCII/RTU)

Weight: 2.7 oz

Compliance: CE, cULus

Input Type: Thermocouple, RTD, DC Voltage or DC Current

Output Note: Relay: 3 A @ 250 VAC resistive

Memory Backup: Non-Volatile

Switch Rating: 3 A @ 250 Vac

Control Output: SPST Relay

Data Interface: RS-485 Modbus ASCII/RTU

Supply Voltage: 24 Vdc

Controller Type: Master

Output Type (A): Voltage Pulse

Output Type (B): Relay

RTD Input Range: JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F

Power Consumption: 3 W

Supply Power Type: DC

Voltage Input Range: 0 to 5 V, 0 to 10 V

Input Control Signal: 0 to 20 mA

Mounting Orientation: DIN Rail

Voltage Output Range: 12 Vdc

Temperature Sensor Type: RTD or Thermocouple

Operating Temperature, Max: 122 °F

Operating Temperature, Min: 32 °F

Thermocouple Input Range Note: Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F
