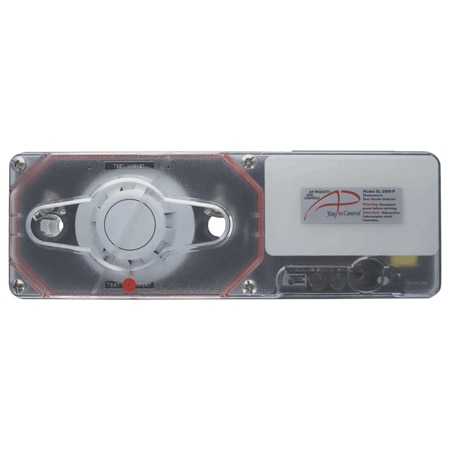

Dwyer SL-53546-021K Duct Smoke Detector for HVAC – Alerts, Deactivates Fans, Easy Install (Photoelectric, BOSEC, CE, CPR, DIBt, FG, LPCB, SBSC, VdS)
Manufacturer: Dwyer Model: SL-53546-021K - Contact
Weight: 2.5 lb
Materials: Plastic, Polycarbonate
Compliance: BOSEC, CE, CPR, DIBt, FG, LPCB, SBSC, VdS
Sensor Type: Photoelectric
Supply Voltage: 9 to 33 Vdc
Compliance Note: cULus (UL 268A) file # S2829, CSFM listed (3240-1004:105), MEA accepted (73-92-E; VOL. 27).
Air Velocity, Max: 4000 FPM
Air Velocity, Min: 100 FPM
Electrical Rating: 10 A @ 115 Vac
Enclosure Ratings: IP10
Relative Humidity: 10-85% RH No-Condensing
Supply Power Type: DC
Electrical Connection: Screw Terminal
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
