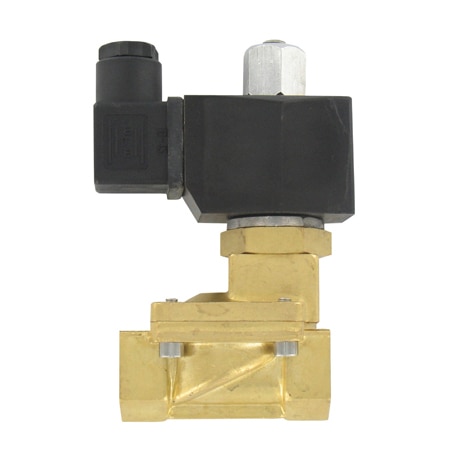

Dwyer SSV-B5N4 Compact Brass Solenoid Valves – Normally Open – NBR Seal – Max Temp 176°F (7.6 gal/min, 3/4 in, NPT Female, 0.79 in)
Manufacturer: Dwyer Model: SSV-B5N4 - Contact
Weight: 2.42 lb
Cv Factor: 7.6 gal/min
Materials: Nylon
Compliance: CE
Orifice Size: 0.79 in
Supply Voltage: 24 Vdc
Pressure Limits: Up to 174 psi
Enclosure Ratings: IP54, NEMA Type 13
Materials, Wetted: Brass, Buna-N (NBR), Stainless Steel
Power Consumption: Inrush: 82 VA, Holding: 33 VA
Supply Power Type: DC
Type of Operation: Normally Open
Media Compatibility: Consult Factory
Mounting Orientation: None
Electrical Connection: DIN 43650 A (solenoid valve)
Process Connection Size: 3/4 in
Process Connection Type: NPT Female
Operating Pressure Range: 7.3 to 116 psi
Operating Temperature, Max: 149 °F
Operating Temperature, Min: 32 °F
