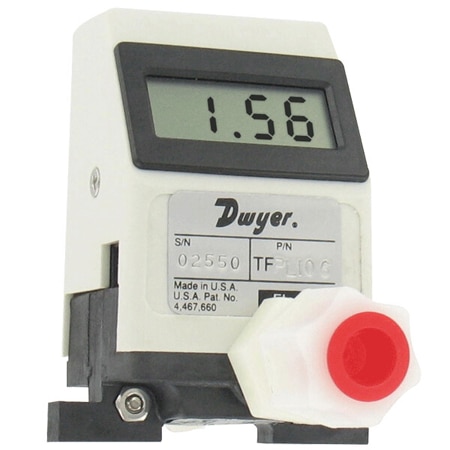

Dwyer TFP-LI03 Liquid Turbine Flow Meters – 0 to 5 Vdc Output, LCD, Turbo Wheel Tech (0.1 l/min)
Manufacturer: Dwyer Model: TFP-LI03 - Contact
Length: 3.4219 in
Weight: 0.27 lb
Accuracy: ± 1 %
Linearity: ± 1%
Compliance: CE
Port 1 Size: 1/8 in
Port 1 Type: Compression Fitting
Port 2 Size: 1/8 in
Port 2 Type: Compression Fitting
Sensitivity: ± 0.2% FS/°C
Display Note: LCD, 0.39˝ (10 mm) digits (only in LPM)
Display Type: LCD
Output Detail: 0 to 5 VDC: Minimum 2.5 kΩ Load
Output Signal: Voltage
Pressure Type: Gauge
Repeatability: ± 0.2%
Supply Voltage: 11.5 to 15 Vdc
Pressure Limits: Up to 100 psi
Enclosure Ratings: IP10, NEMA Type 1
Materials, Wetted: Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire
Power Consumption: 35 mA @ 12 Vdc
Supply Power Type: DC
Media Compatibility: Alcohols, Compatible Liquids, Oils, Water
Electrical Connection: Four-Pin
Storage Temperature, Max: 158 °F
Storage Temperature, Min: 32 °F
Volumetric Flow Rate, Max: 0.1 l/min
Volumetric Flow Rate, Min: 0.013 l/min
Operating Temperature, Max: 131 °F
Operating Temperature, Min: 41 °F
