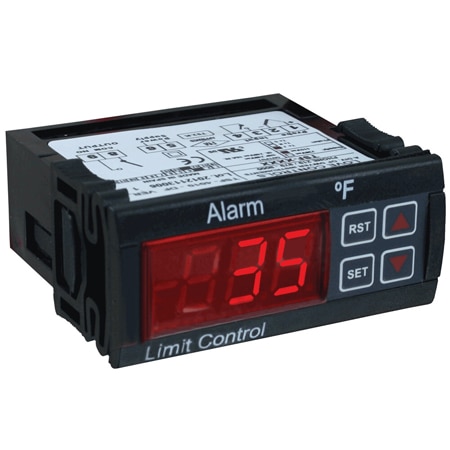

Dwyer TSF-4011 Thermocouple Limit Control with Alarm & Relay for Gas Ovens/Burners (Thermocouple, ± 1 %, LED, J: 0 to 700 °C ; K: 0 to 999 °C ; S: 0 to 999 °C)
Manufacturer: Dwyer Model: TSF-4011 - Contact
Weight: 2.3 oz
Accuracy: ± 1 %
Compliance: CE, cURus, FM
Resolution: 1°C
Switch Note: SPDT relay rated 16 A @ 240 VAC resistive
Switch Type: SPDT NO/NC, Selectable
Display Note: 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.
Display Type: LED
Control Input: On off manual Auto
Memory Backup: Non-Volatile
Switch Rating: 16 A @ 240 Vac
Control Output: Relay
Supply Voltage: 115 Vac
supply-voltage: 115 Vac
Number of Digits: 3
Enclosure Ratings: IP64, NEMA Type 3R
Horsepower Rating: 1 hp
Power Consumption: 4 VA
Supply Power Type: AC
Thermocouple Type: J, K, S
Temperature Sensor Type: Thermocouple
Storage Temperature, Max: 176 °F
Storage Temperature, Min: -4 °F
Operating Temperature, Max: 150 °F
Operating Temperature, Min: 32 °F
Temperature Measurement Range: J: 0 to 700 °C ; K: 0 to 999 °C ; S: 0 to 999 °C
