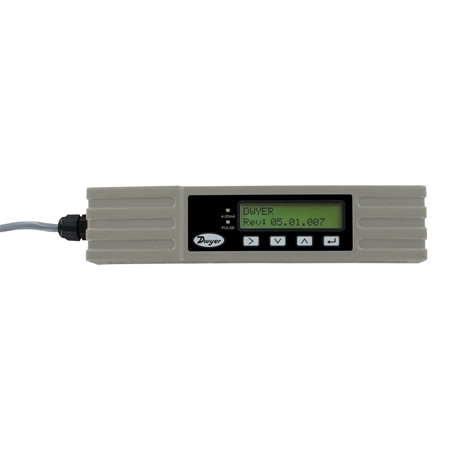

Dwyer UFM2-16 Clamp-On Ultrasonic Flowmeter for 3/4 to 7 in Pipes – 4-20 mA Output (7 in, 32.8 ft/s)

Weight: 2.9 lb

Accuracy: ± 3 %

Materials: Polycarbonate

Compliance: CE

Display Note: Backlit: 3.27˝ H x 0.74˝ W (83.1 mm x 18.8 mm), 2 line x 16 characters

Display Type: LCD

Accuracy Note: ± 3% of flow reading for >0.98 ft/s (>0.3 m/s)

Output Detail: Analog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 opto isolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max

Output Signal: Current, DC Pulse

Repeatability: ± 0.15%

Response Time: <1 s

Pipe Size, Max: 7 in

Pipe Size, Min: 5 in

Supply Voltage: 12 to 24 Vac/Vdc

Load Resistance: 620 Ω max

Enclosure Ratings: IP54

Power Consumption: 7 W

Supply Power Type: AC/DC

Repeatability Note: ± 0.15% of measured value

Media Compatibility: Water

Tube Wall Thickness: 0.39 in

Electrical Connection: Cable

Linear Flow Rate, Max: 32.8 ft/s

Linear Flow Rate, Min: 0.33 ft/s

Process Temperature, Max: 185 °F

Process Temperature, Min: 32 °F

Operating Temperature, Max: 122 °F

Operating Temperature, Min: 32 °F
