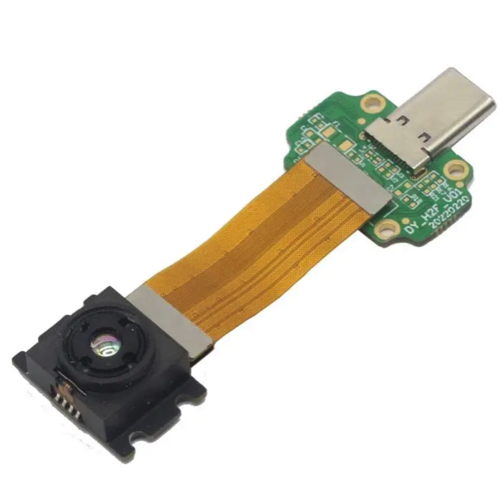

DYT DY-256C Thermal Imaging Module (256×192; -15℃~600℃)
ManufacturerDYT(View more products from this manufacturer)
ModelDY-256C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type of detector: Vanadium oxide uncooled infrared focal plane
Resolution: 256* 192
Spectral range: 8~14um
Temperature measuring range: -15℃~600℃
Pixel spacing: 12um
Temperature measuring accuracy: ±2℃ or ±2% of the reading, whichever is greater
NETD: ＜50mK @25℃
Voltage: 5V
Frame frequency: 25Hz
Lens parameters: 3.2mm F/1.1
Blank correction: Support
Focus mode: Fixed focus
Working temperature: -10℃~75℃: Interface board size: 23.5mmx15mm
Weight: <10g
Temperature calibration: Secondary calibration is provided
Interface: USB
