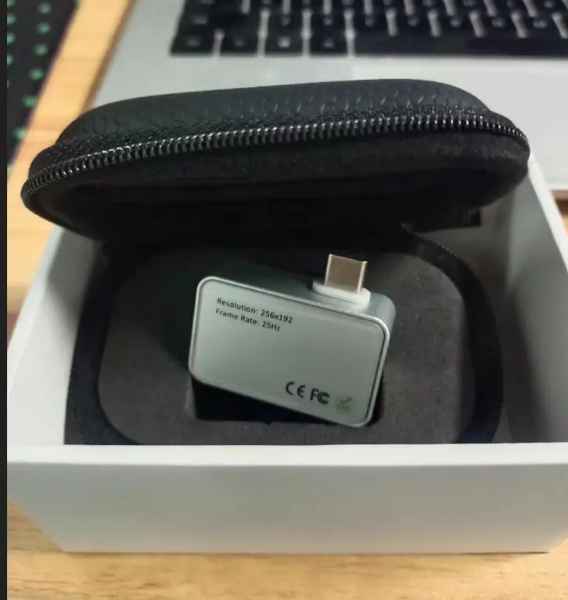

DYT H2FB Mobile Thermal Camera (256*192,-15-600℃)

Thermal imaging resolution: 160*120 / 256* 192

Detector parameters

Size of surface element: 12um;

NETD: ＜ 50mK @25℃;

Frame frequency: 25Hz

Temperature measuring parameters

Temperature measuring range: (-15-600)℃;

Measuring accuracy: ±2℃ or ±2% of the reading;

Temperature measuring method: Point temperature measuring, line temperature measuring, regional temperature measuring, high and low temperature automatic tracking, above-threshold alarm

Infrared lens parameters: 3.2mm/F1.1;

Field angle of H56°: V42°

Focus mode: Fixed focus

Interface: USB type-C

Image mode: Soft mode, texture enhancement, high contrast

Palette: 6 palettes are supported

Temperature width: Temperature measuring range is adjustable

Menu functions: Language, emissivity, temperature unit, high temperature alarm,high and low temperature switch, picture and video

H2FB Mobile thermal camera is a light and mini sized infrared thermal imaging analysis product with high precision and fast response. It can be directly used on an Android phone via a professional thermal imaging analysis App to conduct multi-mode heat map analysis anytime and anywhere. The product is widely applied in equipment maintenance, outdoor search, air conditioning maintenance and other scenes.
