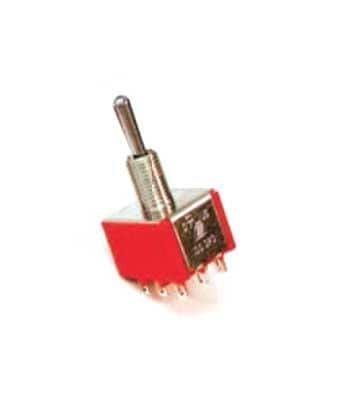

E-Switch 100DP1K1B25M6RE Toggle Switches TOGGLE, 0.4VA 20VAC/VDC, DPDT On-On, Panel Mount, Right Angle PC Pin
Manufacturer: E-Switch Model: 100DP1K1B25M6RE - Contact
Life: 40000 Cycle
Illuminated: Non-Illuminated
Bushing Size: 1/4-40
Contact Form: DPDT
Power Rating: 0.4 VA
Mounting Type: Bushing
Terminal Seal: Epoxy
Actuator Style: Lever
Mounting Style: PCB Mount, Right Angle, Vertical
Actuator Length: 14.4 mm
Contact Plating: Gold
Switch Function: ON - ON
Actuator Material: Brass, Chrome Plated
Termination Style: PC Pin
Voltage Rating AC: 20 VAC
Voltage Rating DC: 20 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
