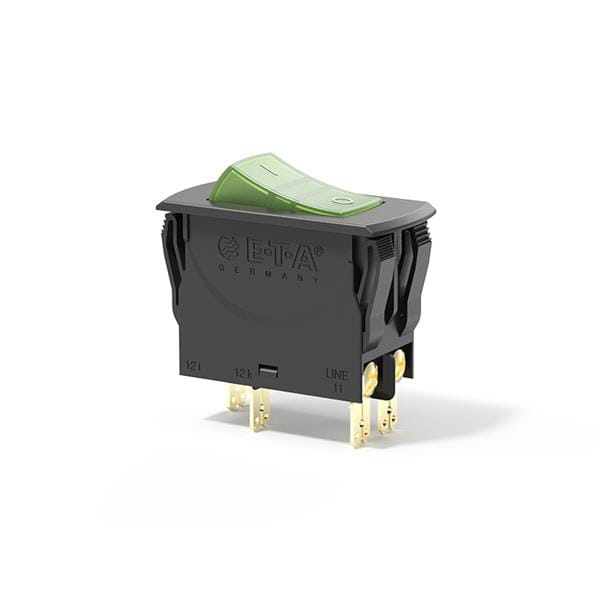

E-T-A Circuit Breakers 3120-N321-P7T1-W19DG3-20A Thermal Overcurrent The 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N is ideally suited for overload prot
Manufacturer: E-T-A Circuit Breakers Model: 3120-N321-P7T1-W19DG3-20A - Contact
Illuminated: Illuminated
Unit Weight: 34 g
Actuator Type: Rocker
Current Rating: 20 A
Mounting Style: Snap-In
Voltage Rating: 50 VDC, 115 VAC
Number of Poles: 2 Pole
Termination Style: Blade
Voltage Rating AC: 115 VAC
Voltage Rating DC: 50 VDC
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 30 C
