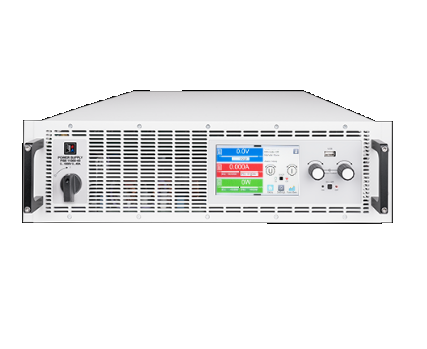

EA Elektro-Automatik PSB 9080-240 3U Programmable Bidirectional DC Power Supply (Standard; 80V; 240A; 10000W)

Rated voltage & range : 0...80 V

- Ripple (source) (1): <320 mVPP / <25 mVRMS

Insulation (neg. DC pole to PE) : ±400 V DC

Insulation (pos. DC pole to PE) : ±400 V DC

Rated current & range : 0...240 A

Rated power (standard model) : 0...10000 W

Efficiency : ≈95%

Weight (2): ≈25 kg (55.1 lb)

AC: Supply

- Voltage:

Standard models: 342...528 V, 2ph/3ph

- Frequency: 45...66 Hz

- Power factor: >0.99

(1) RMS value: measured at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz

(2) Weight of the base version, models with option(s) may vary

(3) Ordering number of the EU version, US models or such with option(s) installed have different ordering numbers
