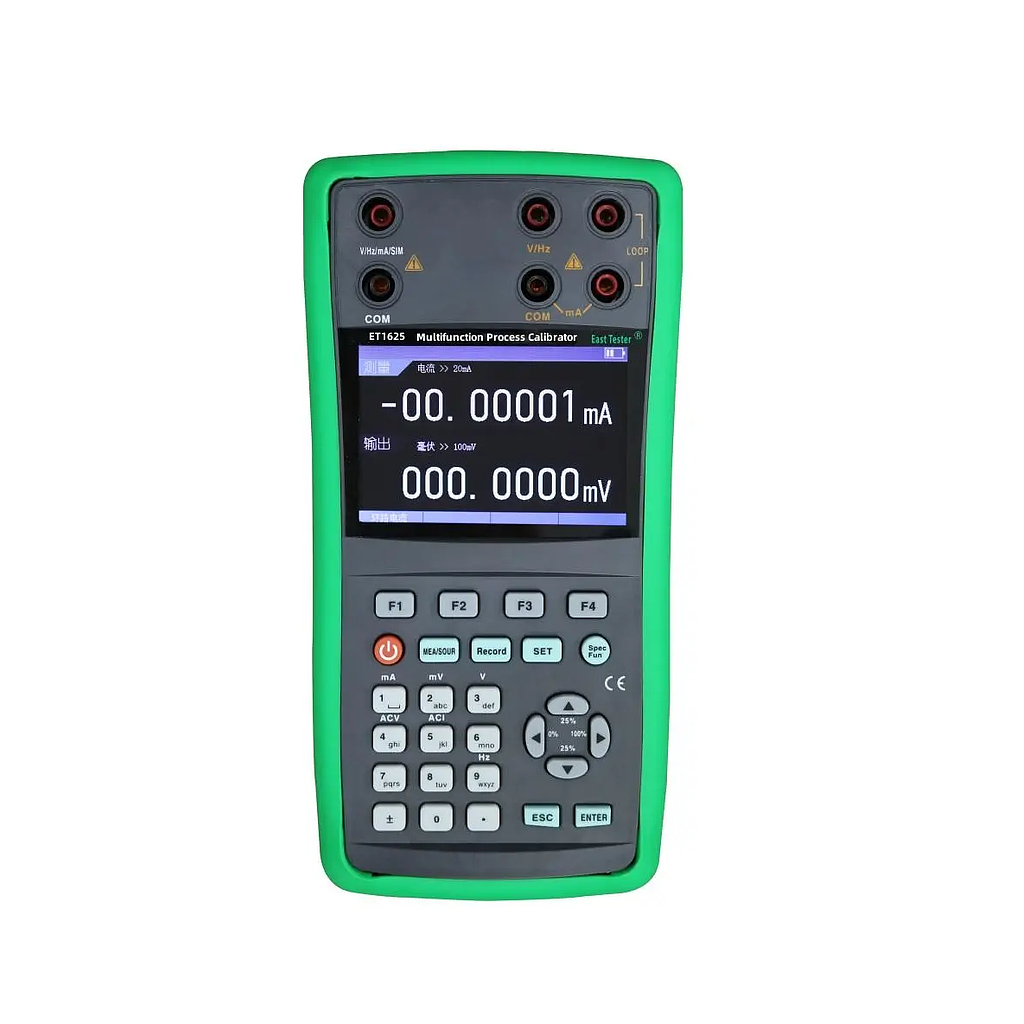

EAST TESTER ET1625H High-precision Multi-function Process Calibrator (10V, 10kHz, 5000Ω)

Voltage output range: 100mV; 1V; 10V

Current output (active and passive): 30mA

Frequency output range: 100Hz; 1kHz; 10kHz

Resistive output range: 50Ω; 500Ω; 5000Ω

Pulse output range: 10Hz(1~100000); 1kHz(1~100000); 100kHz(1~100000)

Switch output range: 100Hz(1Hz~110Hz); 1kHz(0.1kHz~1.1kHz); 10kHz(1kHz~11kHz); 100kHz(10kHz~110kHz)

RTD output: See the thermal resistance table for details (datasheet)

Thermocouple output: See thermocouple table for details (datasheet)

Voltage measurement range: 200mV; 2V; 20V; 200V

Current measurement range: 20mA; 200mA

Frequency measurement range: 100Hz; 1kHz; 10kHz

Resistance measurement (four-wire) range: 50Ω; 500Ω; 5000Ω

Resistance measurement (two or three wires) range: 50Ω; 500Ω; 5000Ω

Switch measurement: CLOSE/OPEN

Thermal resistance measurement: See the thermal resistance table for details (datasheet)

Thermocouple Measurement: See thermocouple table for details (datasheet)

HART: have

Use environment: temperature 20℃±2℃, relative humidity≦80%RH

Dimensions of the calibration table: 1880mm (length) × 758mm (width) × 1460mm (height)

Power supply: AC220V±10%, 50Hz±2Hz

Power consumption: <500W
