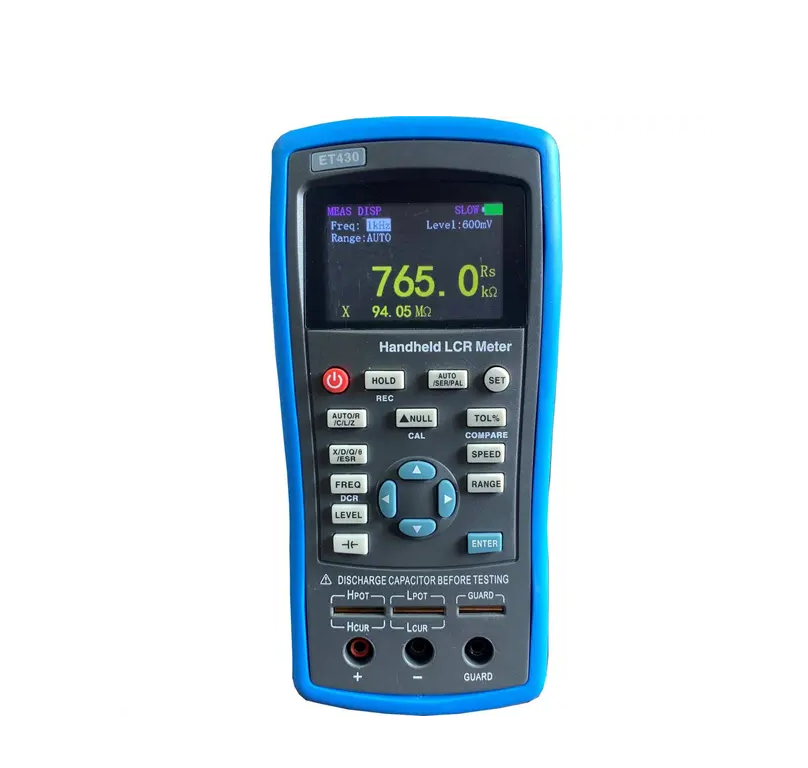

EAST TESTER ET430 Handed LCR Meter (100Hz,120Hz,1KHz,10KHz,40kHz,100KHz)

Test frequency: 100Hz,120Hz,1KHz,10KHz,40kHz,100KHz

Basic accuracy: 0.30%

Display: 2.8 inch TFT LCD

Display digit: Main parameters: 5 bits, secondary parameters: 5 bits

Measurement parameters: Main parameters: L/C/R/Z, sub-parameters: X/D/Q/theta/ESR

Electrolytic capacitor mode: √

DCR mode: x

Measuring range: L：0.000μH～2000H，C：0.000pF～20.000mF，R：0.0001Ω～200.00MΩ

Measurement display speed: 1/s (slow), 2/s (medium), 4/s (fast)

Internal offset: x

Test level: 0.3Vrms; 0.6Vrms

Calibration function: Open circuit calibration and short circuit calibration

Screening function: The limit range of screening can be set to 1%-50%, of which the fixed points are 1%, 5%, 10%, 20%.

Deviation measurement: Used to compare the percentage of deviation between the component and the nominal value set and display

Other: Adjust backlight brightness, automatic shutdown time can be set, Chinese and English optional, USB Device communication

Standard accessories:

- Mini-USB data Wires;

- Power adapter;

- Short circuit chip;

- Red&black rubber plug;

- Large capacity lithium battery

- Kelvin test clip(Except ET430B/ ET430)

Optional accessories:

- Kelvin test clip( ET430B/ET430)

- SMD testing cl
