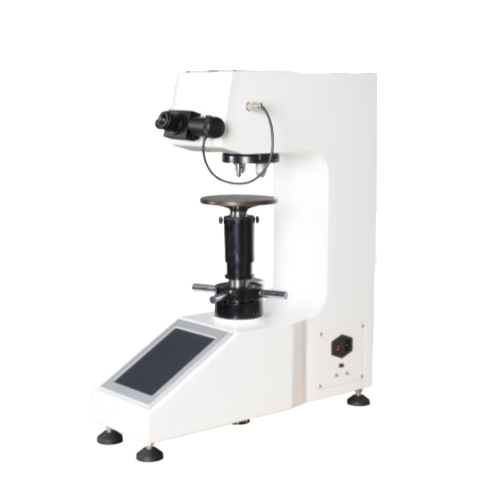

EBP DVQ-10ALT Advanced TouchScreen Digital Vickers Hardness Tester (0.3~10Kgf; HV0.3~HV10)

Turret: Automatic (motorized switch)

Force loading: Automatic loading-dwell-unloading

Test force: 0.3Kgf(2.94N), 0.5Kgf(4.90N), 1.0Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N),

                 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N) (can made from 0.2kgf)

Hardness scale: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10

Min measuring unit: 0.01µm

Hardness range: 8-2900HV (or8-4000HV)

Eyepiece: 10X digital eyepiece (15X for optional purchase)

Objective: 5X, 10X, 20X, 40X(select any 3 pieces)

Magnification: 50X, 100X, 200X, 400 (select any 3 from them)

Dwell time: 1-99S (1 second per step)

Data output: 8" touchscreen; USB port (can save to U-flash in Excel format)

Test space: 180mmx160mm (HeightxDepth)

Power supply: AC220V+5%, 50-60Hz

Standard: ISO6507, ASTME92, JISZ2244, GB/T4340.2

Size & N/W: 580*240*660mm; 50kg

Packing size & G/W: 800x470x800; 76kg
