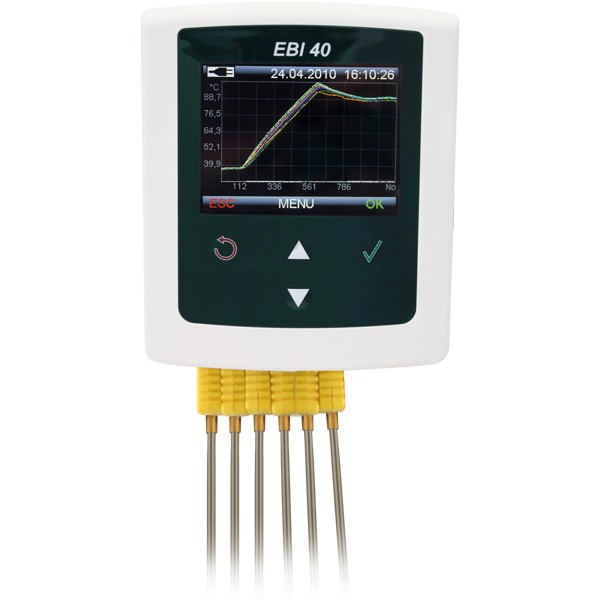

EBRO EBI 40 TC-01 (1340-6400) Multi-Channel Temperature Data Logger (±0.5 °C; -200 °C...+1200 °C)
Manufacturer: EBRO Model: EBI 40-TC-01 P/N: 1340-6400 Origin: Germany Guarantee: 12 Month - Request a Quotation
- Contact
Product Description
Monitoring and validation of processes in: Incubators, Refrigerators, Climate cabinets, Storage rooms, Transport studies and Freeze-dryers etc.
• Up to 6 sensors can be connected
• Current values shown in display
• USB interface for PC connection
• Batteriy life max.100 h
• Maximal insulation with thermal insulation box
• Power supply via USB or battery
• Automatic diplay deactivation
• Calculation of temperature profiles
• Configurtion/readout with Software Winlog.pro
Measuring range -200 °C...+1200 °C
Accuracy ±0.5 °C (25 °C without probe)
Resolution 0.1 °C
Operating Temperature 0 °C...+60 °c
Storage temperature 0 °C...+70 °C
Memory 20.000 measured values/channel
Sensor thermocouple type K / SMP connections
Measured variables temperature
IP Rating IP40
Battery Battery or USB
Dimensions 140 x 118 x 35 mm
Weight approx. 400 g
Certificate Factory calibration certificate
Options
EBI TIB 400-01 Thermal Insulation Box; Part No. 1340-6430
TPN 611 Probe; Part No. 1343-0800
TPN 1011 Probe; Part No. 1343-0652
TPN 911 Probe; Part No. 1343-0641
TPN 801 Probe; Part No. 1343-0639
Wall bracket for EBI 40; Part No. 1340-6431
TPN 701 Probe; Part No. 1343-0845
TPN 1201 Probe ; Part No. 1343-0678
TPN 913 Probe; Part No. 1343-0644
TPN 901 Probe; Part No. 1343-0640
TPN 601 Probe; Part No. 1343-0646
