Applications
Structure description of the soil (even the very thin layers)
Root investigation to gain insight in the possibilities for a root system considering depth and intensity
Determination of contents and density of soil using almost undisturbed samples
Researching the moisture content and the concentration of dissolved substances in long running field studies
Studies of the flow behaviour of water and dissolved substances e.g., soils where very preferential moisture transport occurs
Archaeological research
Specifications
Hammer: Atlas Copco Cobra TT
Connection: RD32 screw thread
Maximum root thickness: 20 mm
Maximum sample depth: 1 m
Power supply: Gasoline
Product material: Steel, PVC, other material
Rod or cable operated: Rod
Sample diameter: 84 mm
Sample length: 1 m
Sample specification: Undisturbed
Sample volume: 6950 ml
Sampler position: Vertical
Package size: 145 x 62 x 72 cm
Weight: 101 kg
Description
The soil column cylinder auger has been developed to take undisturbed soil samples. This allows a fast insight in the build-up of the soil profile, the possibilities for a root system, and more. The greater the insight in these matters, the more effective the soil can be treated and fertilised.
With the soil column cylinder auger system it is possible to take almost undisturbed samples with a length of 1 metre and a diameter of 90 millimetres, without digging a profile pit.
The auger is hammered into the soil by a gasoline driven hammer (Cobra TT), which can be replaced by an electric Hammer on request. The soil auger has a side cover that is easily removable, for checking and/or for sub-sampling of the sample taken.

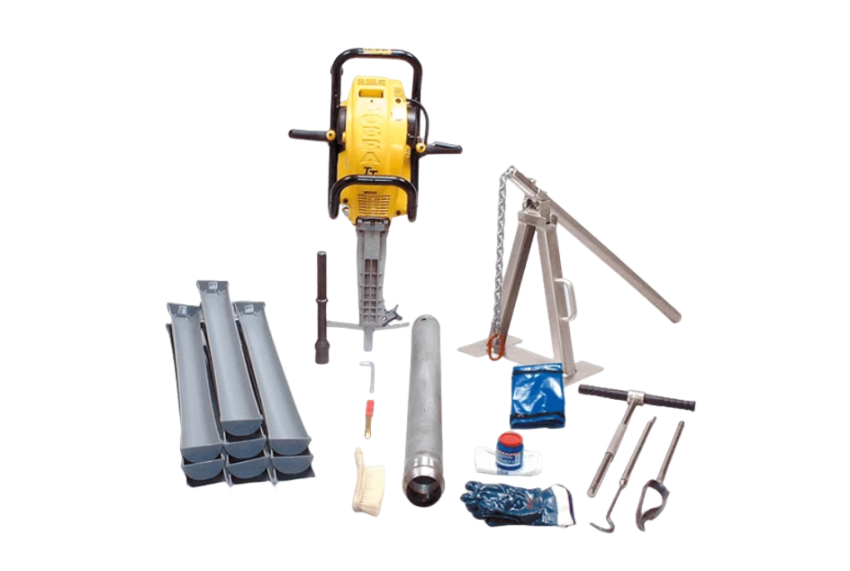

This set contains
Cobra TT hammer in wooden transport box
Striking pen Cobra – RD32
Soil column cylinder auger
Steel lifting jack
Lever with chain, length 1 metre
Hook for extracting cutting shoe + accessories
Sample gutters (10 pieces)
Maintenance kit with gloves
Carrying bag for field equipment
Datasheet
