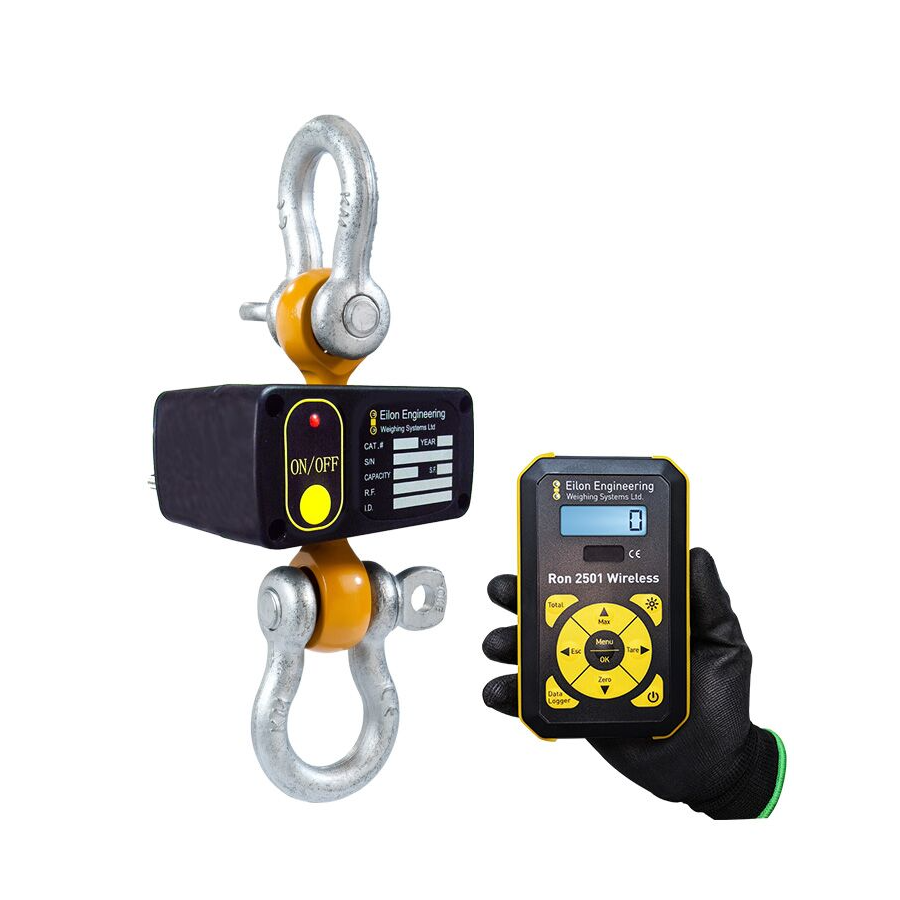

Eilon engineering Ron 2501 Wireless Dynamometer (2 tons, 0.1%)

Full Range: 2 tons

Resolution: 0.5 kgs

Load cell weight: 0.3kgs

H1 (max.): 123mm

H2 (max.):  92mm

B (max.): 16mm

L: 84mm

Ø D1 (max.): 31mm

Ø D2 (min.): 17mm

Matching anchor shackle size:  1 /2, 7 /16, 3 /8 inch

Safety factor: 5:1

Accuracy: 0.1% of full range.

Transmission Range: Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight).

Calibration: User calibration. Initial factory calibration, fully traceable (certified).

Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.

Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.

Display: 6 digits, ½" (12mm) liquid crystal display. Overload warnings (100%/130%), low battery indication, Gross/Net. Refresh rate 1Hz.

Sampling Rate: 200 per second.

Functions: Zero, Tare, Battery level indication, Low battery warning, Max. (peak hold).

Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons)

Indicator/Load Cell Housing: High quality ABS.

Environmental:

        Loadcell: -25 ~ 80°C, IP67

        Indicator: -20 ~ 70°C, IP65
