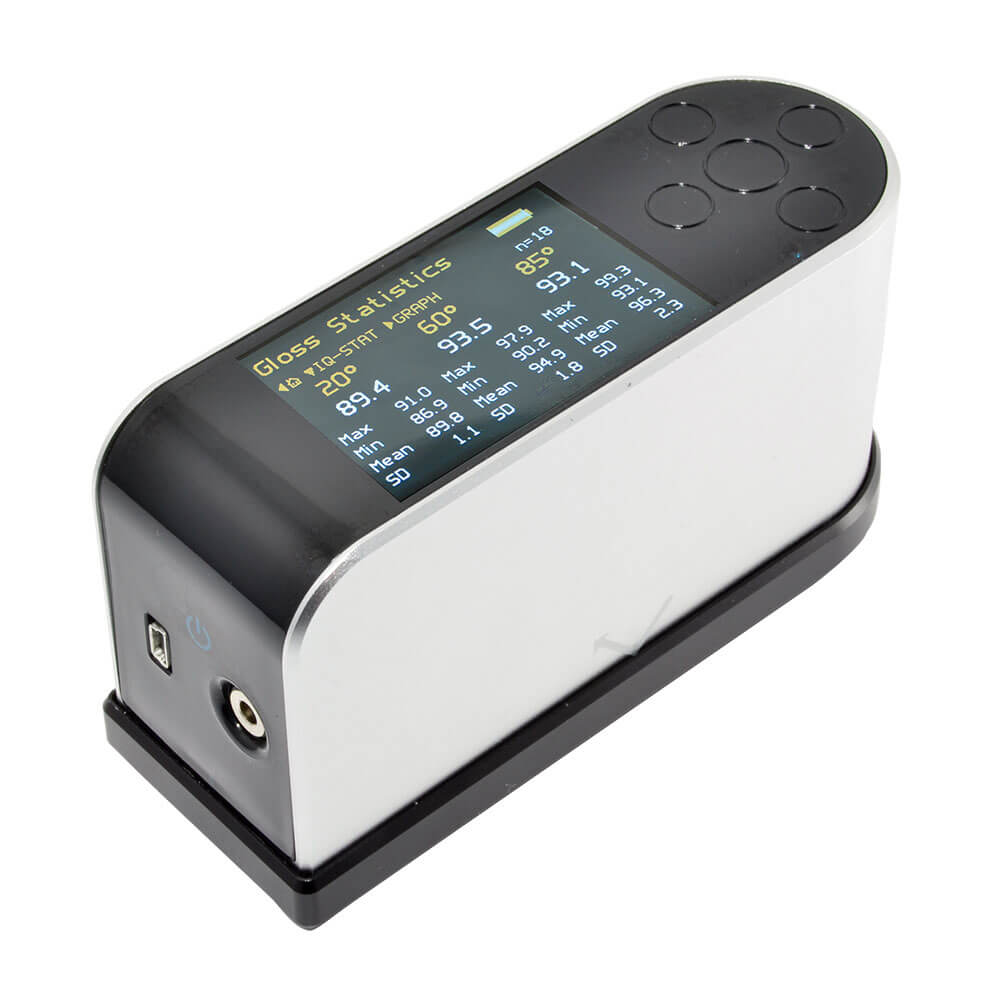

Elcometer J408--268 Triple Angle Gloss and distinctiveness of image (DOI) meter (20/60/85°)
Manufacturer: ELCOMETER Model: J408--268 - Request a Quotation
- Contact
Easy to use menu structure: English, Spanish, French, Italian, German, Chinese
Bright colour screen: Adjustable brightness, 6 button touch sensitive interface
On screen statistics: x, σ, maximum & minimum value
Gauge memory; number of readings: up to 999 readings & curves
Repeat measurement mode: user definable: 2, 5 or 10 seconds
Measurement Range (Gloss/Haze/DOI/ RIQ):
+ 20°: 0-2,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 60°: 0-1,000GU/0-2,000GU/0-100 DOI/0-100 RIQ
+ 85°: 0-150GU/0-2,000GU/0-100 DOI/0-100 RIQ
Resolution (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.1GU/0.1HU/0.1/0.1GU
Repeatability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.2GU/0.2HU/0.2/0.2GU
Reproduceability (Gloss/Haze/DOI/ RIQ/Goniophotometric): 0.5GU/0.5HU/0.5/0.5GU
Dimension (H x W x D): 65 x 140 x 50mm
Weight: 790g (1lb 12oz)
Packing List: Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster® software and operating instructions.
Elcometer 408 Triple Angle Gloss & DOI Meter
The Elcometer 408 provides the very latest in gloss measurement technology, providing accurate gloss, haze and distinctiveness of image (DOI) analysis in a single reading.
Key features of the Elcometer 408 Gloss Meter include:
Accurate
- Fast and simultaneous measurement of gloss, haze, DOI, Rspec, RIQ and Goniophotometric profiles
- Each instrument is supplied with a Calibration Certificate
Simple
- Bright, easy to read LCD screen displays the gloss value, statistics & graphs
- Display measurements are user definable
- Each set of readings is time & date stamped
Flexible
- Triple (20/60/85°) angle for maximum accuracy and resolution in all gloss applications
- Bluetooth® or USB download to ElcoMaster® data management software for instant analysis
Durable
- Robust aluminium construction ensures optical stability
- 17hrs+ continuous operation or 20,000+ readings
- Compact & portable instrument with integrated tile holder
Efficient
- Easy menu-driven user interface in multiple languages
- Clear, illuminated display showing up to five parameters on screen
- On board trend analysis with gloss and image quality (IQ) values
Powerful
- On board memory for 999 readings with full goniophotometric profiles
- Internal battery is fully rechargeable in 2.5 hours
Elcometer 408 Triple Angle Gloss & DOI Meter
Technical Specification
Product Features |
|
Easy to use menu structure |
English, Spanish, French, Italian, German, Chinese |
Bright colour screen; with permanent back light |
Adjustable brightness, 6 button touch sensitive interface |
User definable measurement display |
■ |
Scratch & solvent resistant display |
■ |
Mains or USB power supply |
■ |
Calibration certificate |
■ |
Data output |
■ |
USB; to PC |
■ |
Bluetooth®*: to PC or Android™ mobile device# |
■ |
On screen statistics |
x, σ, maximum & minimum value |
ElcoMaster® software & USB cable |
■ |
Date and time stamp |
■ |
Gauge memory; number of readings |
up to 999 readings & curves |
Repeat measurement mode |
user definable: 2, 5 or 10 seconds |
Delete last reading |
■ |
Standard & fixed batch sizes |
■ |
Trend, gloss & image graphs |
■ |
Measurement modes
|
Gloss (GU): 20°, 60°, 85°; Haze (HU) & Haze Log (HU Log); Distinctiveness of Image (DOI); Peak Reflectance (Rspec); Reflected Image Quality (RIQ) & Goniophotometric Profile |
Technical Specification |
|||||
Part Number |
Description |
Certificate |
|||
J408--268 |
Elcometer 408 Triple Angle Gloss & DOI Meter (20, 60 & 85 Degree) |
• |
|||
Power Supply |
Rechargeable Lithuim Ion gives 17+ hours / 20,000 readings |
||||
Recharge Time |
USB 4.5 hours, Mains Charger 2.5 hours |
||||
|
Gloss |
Haze |
DOI |
RIQ |
Goniophotometric |
Measurement Range |
20°: 0-2,000GU; |
0-2,000GU |
0-100 DOI |
0-100 RIQ |
- |
Resolution |
0.1GU |
0.1HU |
0.1 |
|
0.1GU |
Repeatability |
0.2GU |
0.2HU |
0.2 |
|
0.2GU |
Reproduceability |
0.5GU |
0.5HU |
0.5 |
|
0.5GU |
Peak Specular Reflectance |
-20° ± 0.09375° |
||||
Dimensions (H x W x D) |
65 x 140 x 50mm (2.5 x 5.5 x 1.9”) |
||||
Weight |
790g (1lb 12oz) |
||||
Packing List |
Elcometer 408 Gloss & DOI Meter, high gloss calibration tile with calibration certificate, gloss tile cleaning cloth, mains charger (UK, EU & US), transit case, USB cable, ElcoMaster® software and operating instructions. |
