ELCOMETER 506 Digital Adhesion Tester Kit (2~25 MPa)

Accuracy: ±1% of full scale

Pressure Rating: 26 MPa (3800 psi)

Operating Range: 2 to 25 MPa (300 to 3600 psi)

Scale Resolution: 0.01 MPa (1 psi)

Instrument Length: 290mm (11.5”)

Actuator Height (skirt fitted): 85mm (3.4”)

Instrument Weight: 1.8kg (4lb)

Kit Weight: 4kg (8.8lb)

Battery Type: 2 x AA batteries (digital gauge only) Battery Life: 2000 hours

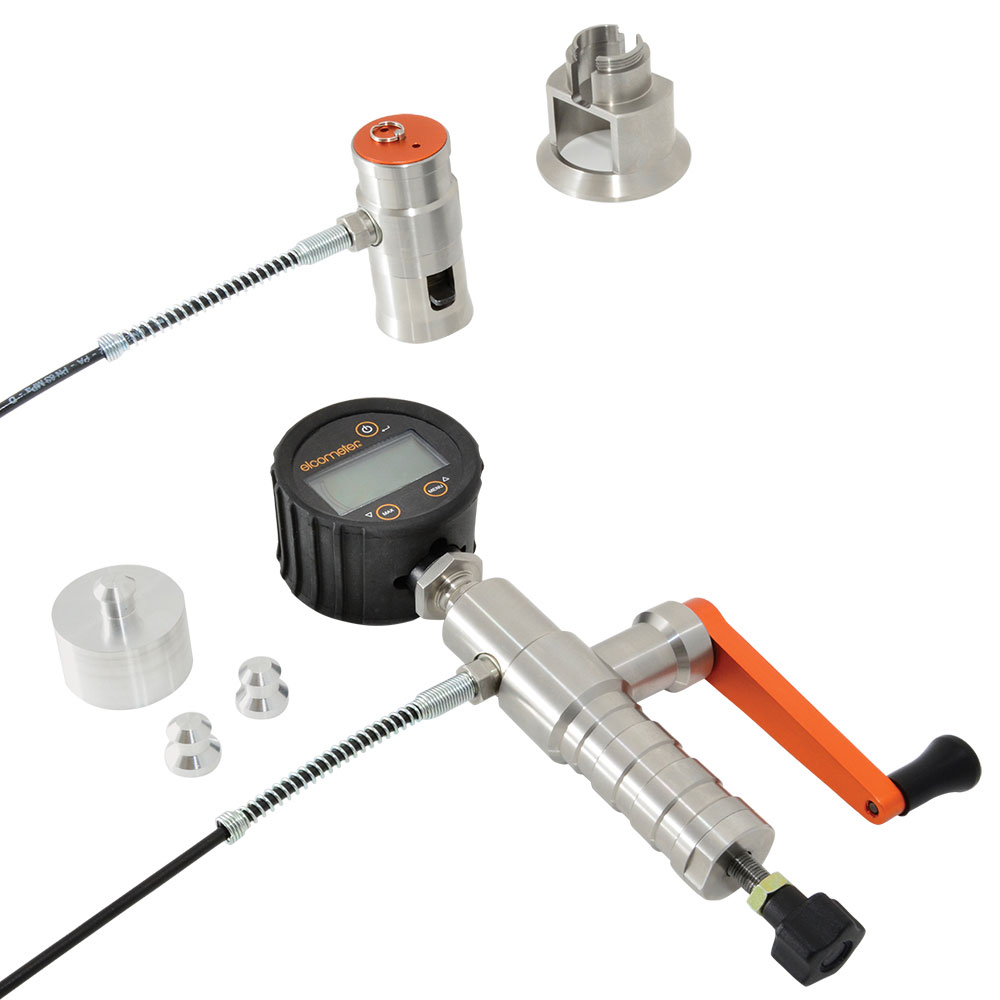

Packing List: Elcometer 506 Adhesion Tester with 20mm dollies (x10), standard skirt for 20mm dollies, 20mm dolly cutter handle, 20mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive pad, carry case, 2 x LR6 (AA) batteries (Digital Gauge only), test certificate and operating instructions

c/w CALIBRATION CERTIFICATE
