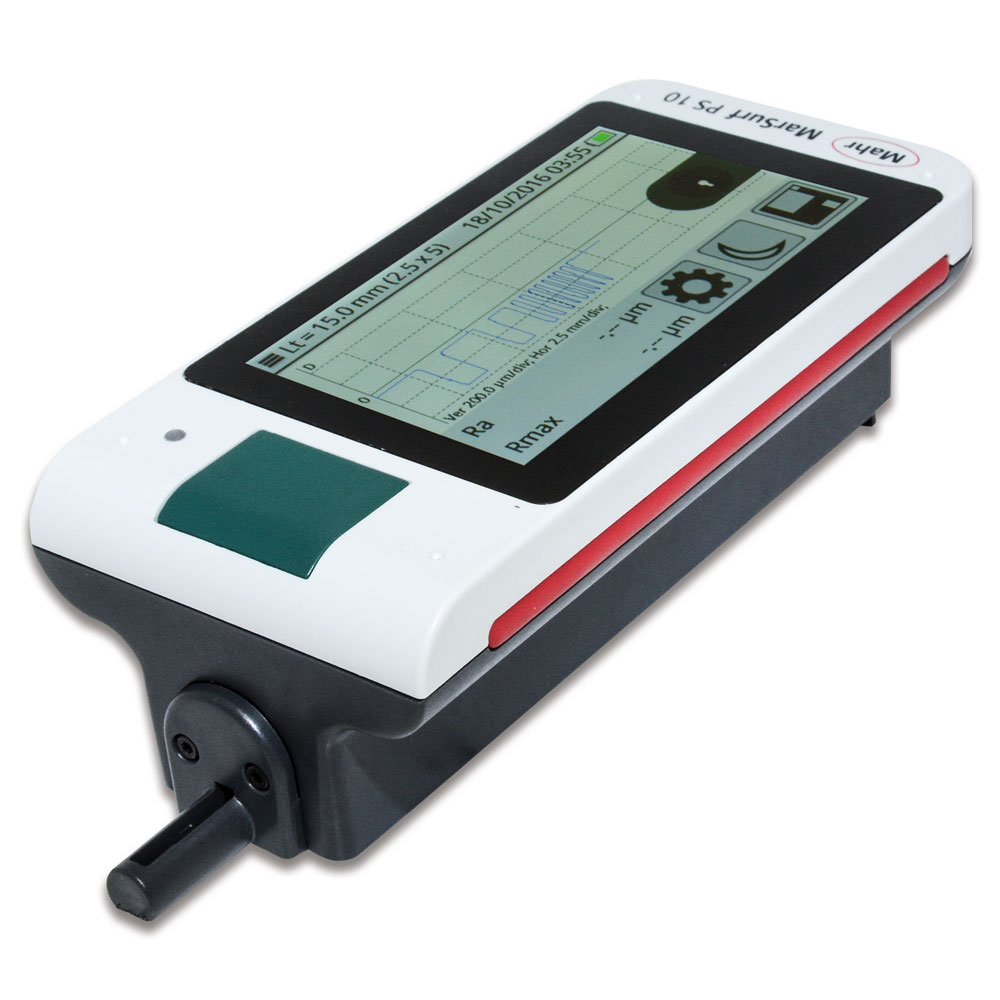

ELCOMETER 7062 MarSurf PS10 Surface Roughness Tester (0-350μm)

Unit of Measurement: Metric, Imperial

Stylus pick-up*: Inductive skidded stylus pick-up, 2μm (80μin) stylus tip, measuring force approx. 0.7 mN

Parameters:

DIN/ISO - Ra, Rq, Rz, Rmax, Rp, Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, R3z, RPc, Rmr, RSm, Rsk, CR, CF, CL, R, AR, Rx

JIS - Ra, Rq, Ry, RzJIS, tp, RSm, S

ASME - Rp, Rpm, RPc, Rsk, tp

MOTIF - R, AR, Rx, CR, CF, CL

Measuring Range: 0-350μm (0-13.78mils) Resolution 8nm (0.315μin)

Filter: Phase-correct profile filter (Gaussian filter) according to DIN EN ISO 16610-21 (formerly ISO 11562), special filter according to DIN EN ISO 13565-1, Is filter according to DIN EN ISO 3274 (can be switched off)

Cutoff (lc): 0.25mm, 0.8mm, 2.5mm; automatic (0.010”, 0.030”, 0.100”)

Traversing Length(Lt): 1.5mm, 4.8mm, 15mm; automatic (0.06”, 0.192”, 0.6”)

Traversing Length(acc. to MOTIF): 1mm, 2mm, 4mm, 8mm, 12mm, 16mm (0.040”, 0.080”, 0.160”, 0.320”, 0.480”, 0.640”)

Evaluation Length (ln): 1.25mm, 4.0mm, 12.50mm (0.050”, 0.15”, 0.50”)

Number (n) of Sampling Lengths Selectable: 1 to 16 sampling lengths

Memory Capacity: 3,900 profiles, 500,000 results

Battery: Rechargeable battery 100V to 264V power supply

Dimensions: 160mm × 77mm × 50mm (6.29” × 3.03” × 1.97”) Weight 500g (1.10lbs)

Packing List: Elcometer 7062 MarSurf PS10 base unit, drive unit, drive unit extension cable. 1 x standard stylus pick-up, built-in battery, roughness standard integrated into casing, height adjustment accessory, stylus pick-up protection, universal charger / mains adapter, USB cable, carry case with shoulder strap and belt loop, calibration certificate and operating instructions
