ELCOMETER 456 Coating Thickness Gauge Non-Ferrous Probe (0-500μm; 90°; 45mm)
Manufacturer: ELCOMETER Model: 456 P/N: T456CNM3R90A - Contact
Accuracy: ±1-3% or ±2.5μm (±1-3% or ±0.1mil)
Range: 0-500μm (0-20mils)
Resolution: 0.1μm: 0-100μm (0.01mil: 0-5mils); 1μm: 100-500μm (0.1mil: 5-20mils)

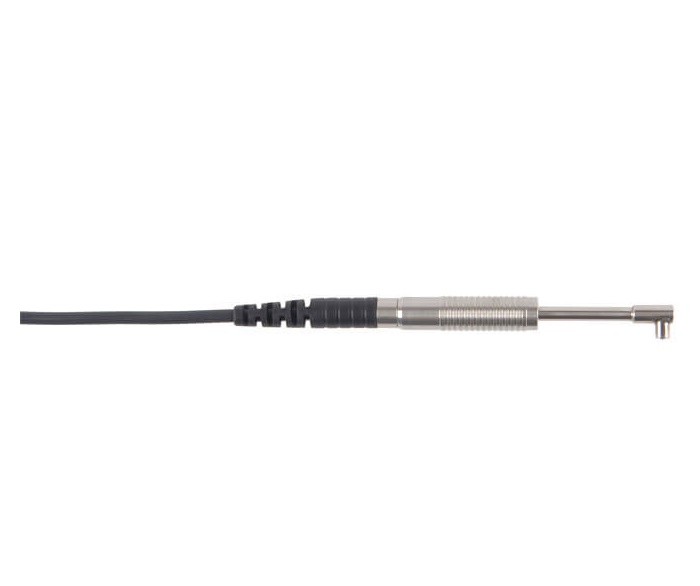

Mini Probe - 90°, 45mm (1.77") long
Minimum Headroom: 16mm (0.63")
Width: 7mm (0.28")
Minimum Sample Diameter: 4mm (0.16")
Minimum Convex Surface Diameter: 6mm (0.24")
Minimum Concave Surface Radius: 8.5mm (0.33")
