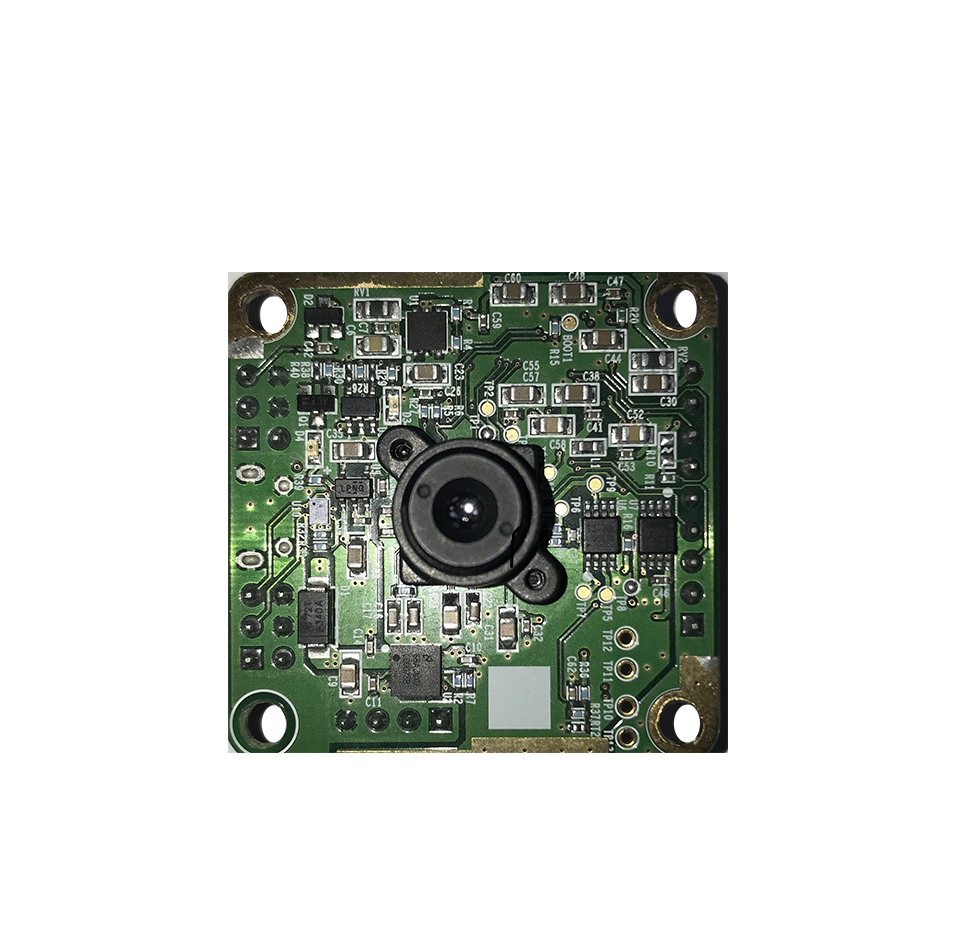

EMTAKE TC3590 Full CMOS Thermal Sensor Core (80 x 60; 90°)
Manufacturer: EMTAKE Model: TC3590 Origin: Korea Guarantee: 12 Month - Contact
Resolution: 80 x 60
Pixel Size: 35 um
NETD: < 100 mk
sensor type: CMOS, Uncooled Amorphous Silicon(a-Si) Micro bolometer
Lens: 90°
Spectral Range: 8um ~ 14 um ( LWIR )
Measurement Temperature: -10℃ ~ 100℃
Relative temperature sensing power: 0.1℃ @30℃
Measurement error rate: ±3℃ or 5%(at30℃)
Shutter type: Shutterless or Shuttered (option)
Power: 5.0V (DC)
Power Consumption: 200mW ↓
Operating Temperature: -10 ~ 50℃
Interface: USB / SPI / I2C / GPIO
Delivery Temperature: -40℃ ~ 105℃
Size: 40mm x 40mm or 35mm x 25mm
