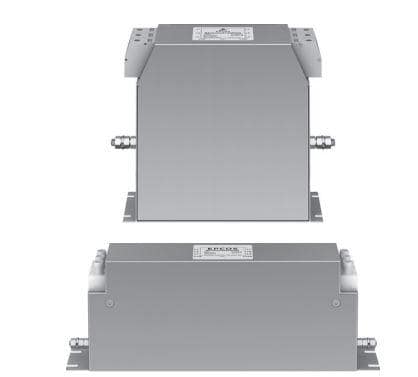

EPCOS B84243A6120Z000 Power Line Filters 3-Line EMV-Filter 120A 530/305VDC
Manufacturer: EPCOS Model: B84243A6120Z000 - Contact
Width: 105 mm
Height: 190 mm
Length: 270 mm
Approvals: CSA C22.2, UL 1283
Compliance: CSA C22.2, UL 1283
Filter Type: Power Line EMC Filter
Current Rating: 120 A
Mounting Style: Chassis Mount
Voltage Rating: 305 VAC, 530 VAC
Leakage Current: 14 mA
Termination Style: Terminal Block
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 25 C
