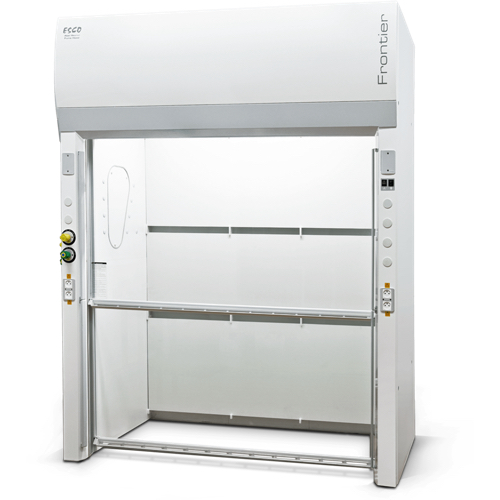

ESCO EFF-8UBRHW-8 Frontier® Floor MountedTM Fume Hoods (100 W, 2216 x 710 x 2140 mm)

220-240 VAC, 50/60 Hz, 1ø

Nominal Size: 2.4 meter

External Dimensions: (W x D x H)

Fume Hood unit only: 2440 x 965 x 2360 mm

With Exhaust Collar: 2440 x 965 x 2405 mm

With Fully-opened Sash: 2440 x 965 x 2688 mm

Internal Dimensions: (W x D x H) 2216 x 710 x 2140 mm

Exhaust Outlet Diameter and Material: 305 mm (12.0”), Fiberglass

Number of Exhaust Collars: 2

Fluorescent Lamp Intensity: 971 lux

Controller: Rocker Switches (Option to upgrade to Sentinel™ XL)

Construction:

Main Body: Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating

Internal Liner (default): Esco Resinate™

Worktop (default): No worktop (Option to purchase low height base cabinet with worktop)

Sash Specifications:

Sash Material: Laminated-Tempered and Framed Safety Glass

Sash Configuration: Horizontal/ vertical

Maximum Sash Opening (two vertical sash up): 1600 mm (63”)

Electrical:

Cabinet Full Load Amps (FLA): 32 A

Cabinet Nominal Power: 100 W (lighting only)

Net Weight (Fume hood unit only. Excludes base cabinet/optional stand): 593 Kg
