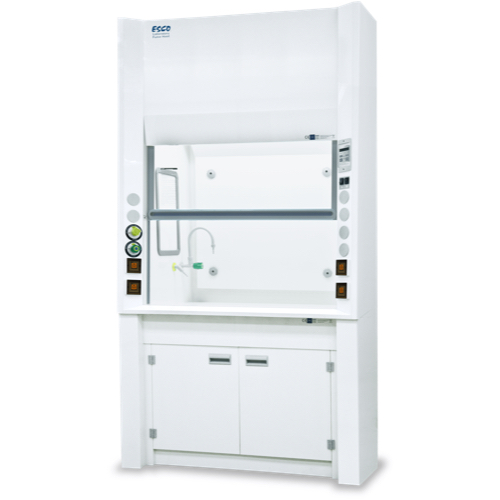

ESCO PPH-6UDPCW-8 Frontier® PPHTM Fume Hoods (25W, 1580 x 665 x 1200 mm)

220-240 VAC, 50/60 Hz, 1Ø

Nominal Size: 1.8 meter

External Dimensions (W x D x H)

Fume Hood unit only: 1800 x 900 x 1500 mm

With Exhaust Collar: 1800 x 900 x 1681 mm

With Fully-opened Sash: 1800 x 900 x 1879 mm

Internal Work Area, Dimensions: (W x D x H) 1580 x 665 x 1200 mm

Exhaust Volume/Static Pressure Required at 0.5 m/s (100 fpm) at Full Open Sash: 2105 cmh at 117 Pa

Exhaust Outlet External Diameter: 300 mm (11.8”)

Number of Exhaust Outlet: 1

Light Intensity at Work Surface: 900 lux

Controller: Rocker Switches (Option to upgrade to Sentinel™ XL)

Construction:

Main Body: Polypropylene

Internal Liner: Polypropylene

Worktop (default): Polypropylene

Sash Specification:

Sash Material: Polycarbonate

Sash Configuration: combination/ Vertical

Sloping: 5° slope

Maximum Sash Opening: 790 mm (31.1”)

Electrical:

Cabinet Full Load Amps (FLA): 32 A

Cabinet Nominal Power: 25W (lighting only)

Net Weight (Fume hood unit only. Excludes base cabinet/ optional stand): 160 Kg
