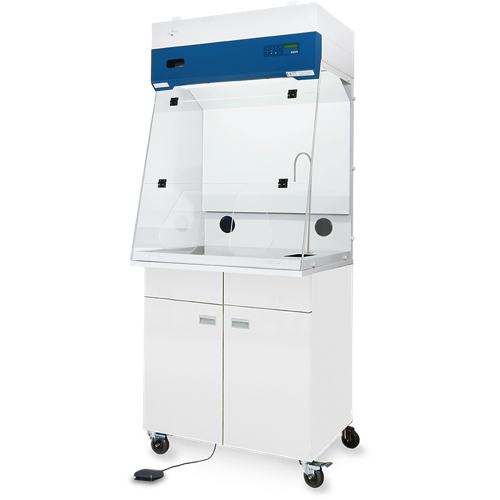

ESCO SPF -4B1 Ascent™ Opti Formax Ductless Fume Hood (1116 x 651 x 829 mm, 220-240 VAC, 50 Hz)

220-240 VAC, 50 Hz

Nominal Size: 1.2 meter

External Dimensions (W x D x H): 1140 x 700 x 1125 mm

Internal Dimensions (W x D x H): 1116 x 651 x 829 mm

Cabinet Construction:

Side Walls: 9.5 mm Acrylic Glass

Rear Wall: Transparent Acrylic Glass

Main Body: 1.2 mm 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder coated finish

Sash Specification:

Work Top: 1.5 mm 16 gauge stainless, type 304 with 4B finish

Sash Material: 6 mm Acrylic Glass

Sash Configuration: Hinged, with arm ports

Sloping: 13°

Filtration System:

Pre-filter: Disposable, non-washable polyester fiber, 85% arrestance, EU3 rated

Main Filter: Activated Carbon for Formalin and Aldehyde, Code F

Numbers of Filters: 2

Base Cabinet:

Dimension (W x D x H): 1140 x 700 x 860 mm

Main Body: Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder coated finish

Fluorescent Light Intensity: 350 Lux (28 foot-candles) at work surface level

Pass-Through for Electrical Connections: 2

Control System: Esco Sentinel™ Silver Microprocessor Controller

Net Weight: 253 Kg
