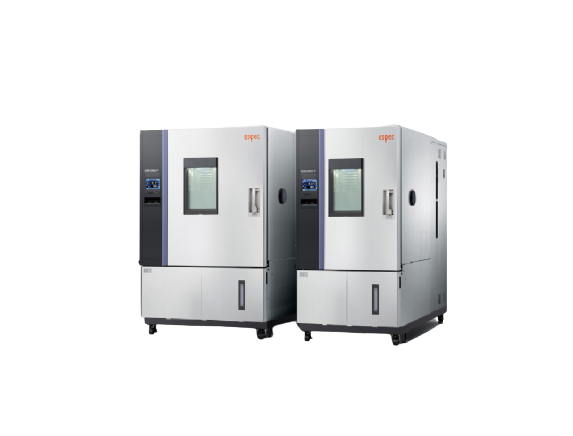

ESPEC ARL−0680 Temperature & Humidity Chamber (−45~180℃, 10~98％rh, 680L, BTHC)

System: Balanced Temperature & Humidity Control (BTHC) system

Temperature performance:

        Temp. range: −45 to ＋180℃ (−49 to ＋356℉)

        Temp. rate of change:

Heat up rate: 6.3 K/min

Pull down rate: 4.8 K/min

         Allowable heat load: 4500 W

Temp. & humid. performance:

         Temp. & humid. range: ＋10 to ＋95℃ / 10 to 98％rh

         Allowable heat load: 500W

Capacity: 680 L

Inside dimensions mm: W850×H1000×D800

Outside dimensions mm: W1050×H1955×D1805

Weight: 510 kg

Utility requirements:

         Allowable ambient conditions: 0 to ＋40℃ (＋32 to ＋104℉) / Up to 75%rh

         Power supply: 380V AC 3φ50Hz: 23 A

Exhaust heat quantity kJ/h (kcal/h): 32400 (7743)
