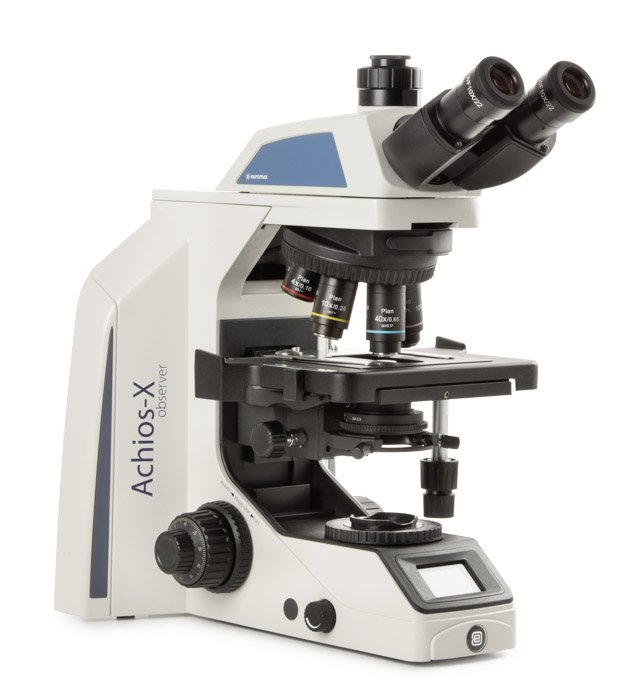

Euromex AX.1153-PLPHi Achios-X Observer trinocular microscope (EWF 10x/22 mm, 10/20/S40/S100x)

EWF 10x/22 mm eyepieces

Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces

Revolving quintuple reversed nosepiece on ball bearings

Plan phase PLPHi  10x/0.25, 20x/40, S40x/0.65, S100x/1.25 oil immersion 60 mm parfocal IOS objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

238 x 150 mm rackless stage equipped with integrated 79 x 55 mm mechanical stage

Height adjustable Abbe condenser

Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 30 mm

Rack-stop for protection of slides and objectives. Friction adjustment

Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with external 100-240 Vac / 5 Vdc 2A power supply (CE)

SLC:  smart light control (SLC) memorizes light intensity for each objective. Setting of color temperature of NeoLED (3200-7000 K). Displays magnification and intensity settings on built-in LCD screen. With lock and sleep timer for energy savings

CSS - Cable and Power Supply Storage System

Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in styrofoam case
