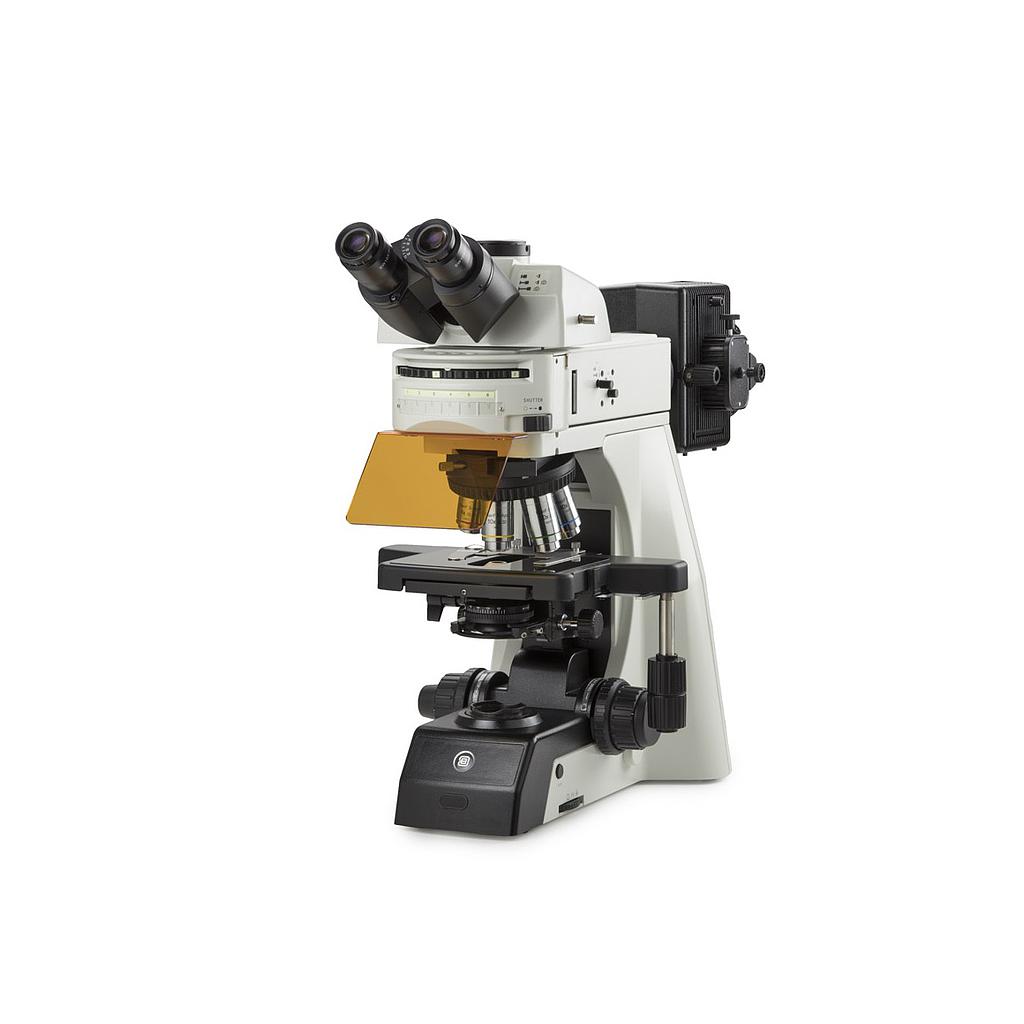

Euromex DX.3153-PLPHi Delphi-X Observer trinocular microscope with fluorescence attachment (SWF 10x/22 mm, 10/20/S40/S100x)

SWF 10x/22 mm eyepieces

Trinocular head with Siedentopf 30° inclined Ø 30 mm tubes. Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces

3-positions beamsplitter (0:100/ 100:0/ 80:20)

Revolving sextuple reversed nosepiece on ball bearings

Plan Phase contrast PLPHi 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil immersion IOS M25 objectives, EIS 60 mm parfocal objectives.

All optics are anti-fungus treated and antireflection coated for maximum light throughput

190 mm x 152 mm stage equipped with integrated 78 x 32 mm mechanical stage and scratch-resistant Gorilla™ glass

Height adjustable and rotating Zernike phase contrast Abbe 1.25 condenser with numerical aperture engravings

Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35 mm

Rack-stop for protection of slides and objectives. Friction adjustment

Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power supply (CE)

Fluorescence attachment with 100 W HBO mercury vapor lamp, UV shield, external power supply and filter sets for Blue excitation (EX 460-490 nm BP, DM 500 nm, EM: 520 nm LP) and Green excitation (EX: 510-550 nm BP, DM: 570 nm, EM: 590 nm LP)

iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy

Carrying grip at the back of the microscope for safe transportation and Allen screwdriver inintegrated holder.

Supplied with power cord, 5 mA 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box
